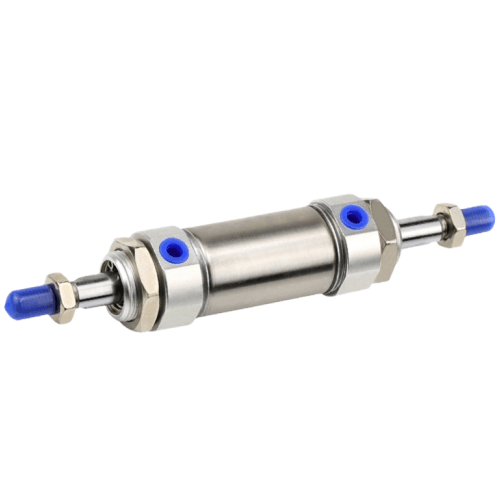

Airtac AirTAC MID Series Double Rod Mini Cylinder MID32X40
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID32X40 Double Rod Miniature Cylinder Specifications
- Bore size: 32mm
- Stroke: 40mm
- Action type: Double-acting
- Operating pressure: 0.1–0.9 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer (both ends)
- Port size: M5x0.8 (standard), optional NPT1/8
- Mounting style: Basic type (no built-in mounting)
- Rod material: Stainless steel SUS304
- Cylinder tube: Aluminum alloy with hard anodization
- Seal material: NBR (nitrile rubber)
- Weight: Approximately 1.2kg (without accessories)
- Dimensions: 140mm(L) × 32mm(Bore) × 50mm(H)
- Max theoretical thrust: 706N at 0.7MPa
- Piston speed: 50–700mm/s
- Protection class: IP54 (standard sealing)
Ultra-compact dual-rod pneumatic cylinder featuring symmetrical force output and space-saving design. The hardened piston rod and anti-rotation mechanism ensure precise linear motion control, while the multi-layer sealing system prevents leakage in high-cycle applications. Requires 40μm filtered dry air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Precision positioning in SMT pick-and-place machines
- Simultaneous clamping mechanisms in CNC fixtures
- Bilateral actuation in semiconductor handling systems
- Compact automation in medical device assembly lines
- Synchronized lifting in optical lens production
Installation note:
Maintain parallel alignment of both rod ends during mounting.
Apply light machine oil (ISO VG32) to rod surfaces before initial operation.
Allow 5mm free space at stroke ends for cushion effectiveness.
| Property | Property Value |
|---|---|
| sku | MID32X40 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <40mm> |
