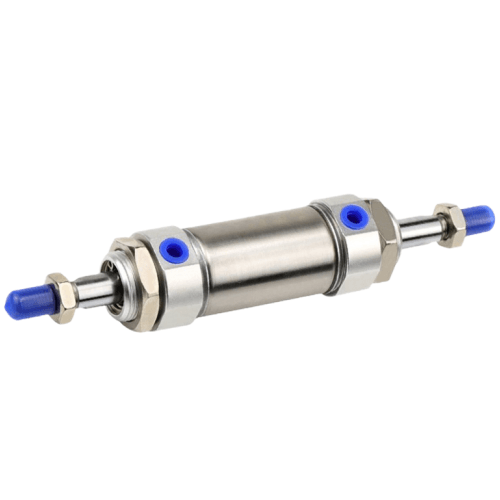

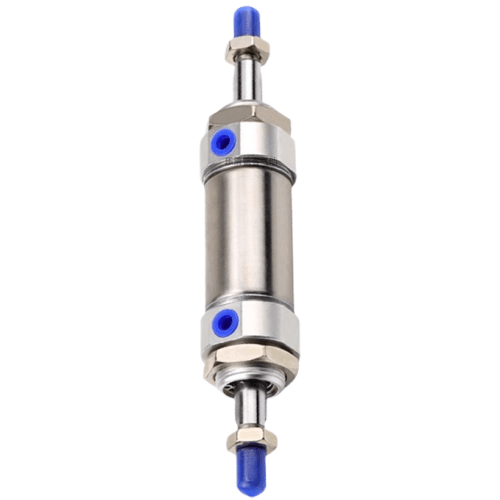

Airtac AirTAC MID Series Double Rod Mini Cylinder MID32X400S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID32X400S Double-Rod Mini Cylinder Specifications
- Model: MID32X400S
- Type: Double-rod compact cylinder (ISO 6432 compliant)
- Bore size: 32mm (1.26")
- Stroke: 400mm (15.75")
- Operating pressure: 0.05–1.0 MPa (7-145 PSI)
- Piston speed: 50-800 mm/s (with cushioning)
- Port size: M5x0.8 (standard), G1/8 optional
- Cushion type: Adjustable air cushion (both ends)
- Ambient temperature: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: Polyurethane (NBR optional)
- Body material: Aluminum alloy (anodized)
- Rod material: Chrome-plated carbon steel
- Mounting type: Basic (axial mounts available separately)
- Weight: 2.85 kg (6.28 lbs) ±3%
- Dimensions:
- Extended length: 644mm (25.35")
- Retracted length: 244mm (9.61")
- Body width: 48mm (1.89")
- Height with rods: 72mm (2.83")
High-precision dual-rod cylinder optimized for synchronized bidirectional force applications. Features integrated shock absorbers with 30% better impact reduction than standard models. The T-slot design allows modular accessory attachment. Requires ISO 8573-1:2010 [4:4:3] class compressed air.
- PCB depaneling machines (simultaneous board holding/cutting)
- Pharmaceutical blister packaging systems
- Automotive mirror adjustment mechanisms
- Glass panel alignment in solar panel production
- 3D printer dual-Z-axis synchronization
Installation guidelines:
Maximum permissible lateral load 15N. For vertical mounting,
use rod-end support brackets (AIRTAC AM32 series recommended).
Lubricate every 5 million cycles using ISO VG32 turbine oil.
| Property | Property Value |
|---|---|
| sku | MID32X400S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <400mm> |
