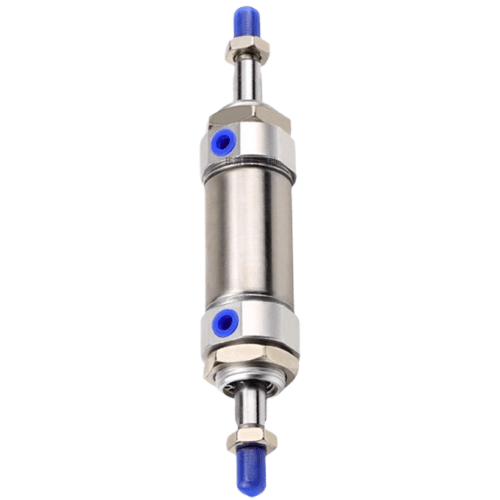

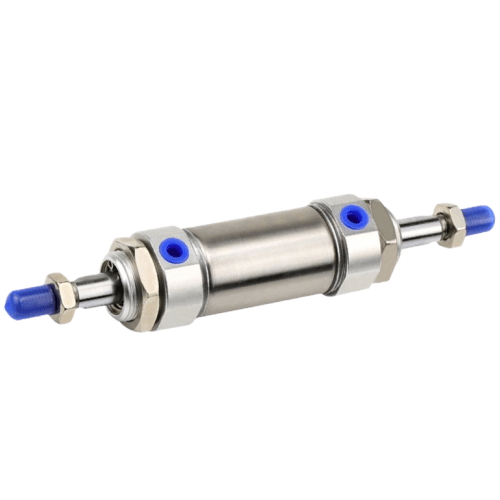

Airtac AirTAC MID Series Double Rod Mini Cylinder MID32X60
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID32X60 Double-Rod Miniature Cylinder Specifications
- Model: MID32X60
- Bore size: 32 mm
- Stroke: 60 mm
- Operating pressure: 0.05–0.9 MPa
- Port size: M5x0.8 (1/8" NPT optional)
- Cushioning: Adjustable rubber buffer (both ends)
- Piston speed: 50–800 mm/s
- Ambient temperature: -20℃ to 80℃
- Material: Aluminum alloy cylinder tube, hardened steel piston rod
- Seal type: NBR wear-resistant seals
- Mounting options: Basic/Flange/Foot/Intermediate trunnion
- Weight: 1.15 kg (with standard accessories)
- Dimensions (L×W×H): 200×50×50 mm (full extension length may vary by 5%)
- Rod diameter: 10 mm (double symmetrical rods)
- Sensor compatibility: Magnetic reed switch ready (slot for D-A9 series sensors)
Ultra-compact dual-rod pneumatic cylinder optimized for space-constrained automation systems. Features symmetrical force output with precise linear motion control through chromed piston rods and anti-rotation design. Corrosion-resistant anodized surface treatment ensures durability in humid environments. Includes built-in cushioning adjustment screws for smooth end-of-stroke deceleration.
- Precision alignment fixtures in semiconductor manufacturing
- Bidirectional clamping mechanisms in CNC tool changers
- Compact packaging machine ejectors with balanced force requirements
- Laboratory automation requiring symmetrical motion synchronization
- Robotic end-effector tooling with space limitations
Installation guidelines:
Lubricate with ISO VG32 hydraulic oil before initial use. Avoid side load exceeding 15N.
For vertical mounting, use locking nuts on piston rods. Allow 5mm clearance around cylinder
body for heat dissipation during continuous operation.
| Property | Property Value |
|---|---|
| sku | MID32X60 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | 60mm |
