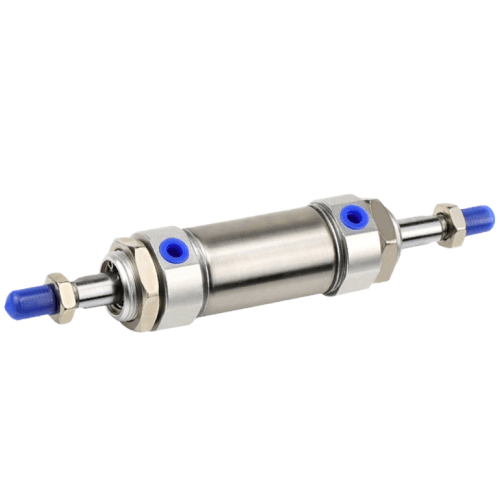

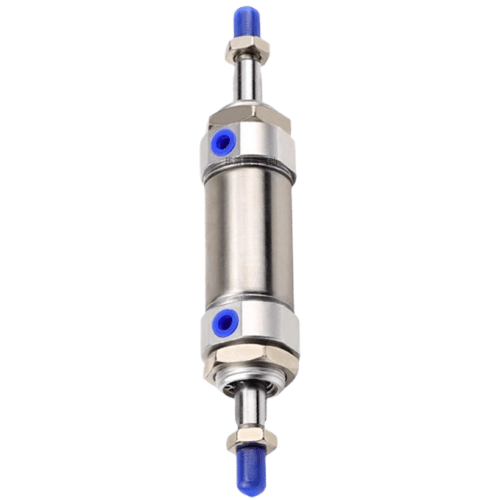

Airtac AirTAC MID Series Double Rod Mini Cylinder MID32X75S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID32X75S Double Rod Mini Cylinder Technical Details
- Model: MID32X75S
- Bore size: Ø32mm
- Stroke: 75mm
- Operating pressure: 0.15–0.8 MPa
- Temperature range: -20℃ to 80℃
- Port size: M5x0.8 (1/8 PT optional)
- Cushion type: Adjustable pneumatic cushion
- Mounting style: MF1 foot-mounted (optional MA front flange)
- Rod material: Chrome-plated stainless steel
- Cylinder tube: Hard anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Weight: 1.2kg ±5%
- Dimensions: 150mm(L) × 32mm(Ø) × 42mm(H)
- Rod diameter: Ø12mm
- Protection rating: IP54
- Piston speed: 50–800mm/s
Ultra-compact double-rod pneumatic cylinder with symmetrical force output, featuring twin piston rods extending from both ends for balanced thrust in precision positioning applications. The hard-coat anodized barrel resists wear in high-cycle operations (1M+ cycles rating). Includes adjustable air cushions at both ends for smooth deceleration.
- Semiconductor wafer handling robots
- Lab automation slide mechanisms
- Pharmaceutical tablet pressing machines
- Optical lens positioning systems
- Food packaging gripper alignment
Installation tips:
Maintain 0.05mm maximum misalignment during mounting. Use locknuts (included) for rod-end load fixation.
Lubricate with ISO VG32 hydraulic oil if operating below -10℃. Requires 5μm filtered air with 1-3 drops/m³ oil mist.
| Property | Property Value |
|---|---|
| sku | MID32X75S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | 75mm |
