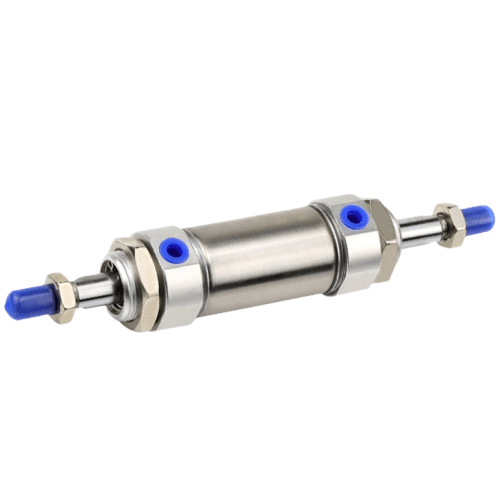

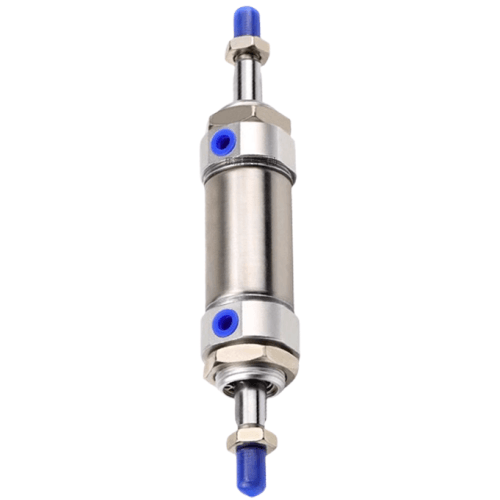

Airtac AirTAC MID Series Double Rod Mini Cylinder MID40X60
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID40X60 Double Rod Mini Cylinder Technical Specifications
- Model: MID40X60
- Type: Double-acting, dual rod compact cylinder
- Bore size: 40mm
- Stroke: 60mm (standard), customizable 10-300mm
- Operating pressure: 0.05-1.0 MPa
- Piston speed: 50-800 mm/s
- Cushioning: Adjustable rubber buffer (both ends)
- Port size: M5x0.8 (standard), optional NPT1/8
- Ambient temperature: -20℃ to 80℃
- Material: Aluminum alloy body, CRMo steel piston rod
- Seal type: NBR seals (FDA compliant option available)
- Weight: 1.25kg ±2% (without accessories)
- Dimensions:
- Length: 165mm (basic length)
- Width: 50mm (max body width)
- Height: 48mm (mounting surface to rod end)
- Rod diameter: 12mm (double rod configuration)
- Protection class: IP54 (standard), IP67 optional
- ISO standard: 6432 compliant
Ultra-compact dual rod cylinder featuring symmetrical force output and space-saving design. The corrosion-resistant anodized aluminum construction ensures durability in humid environments. Both rod ends enable simultaneous actuation of multiple mechanisms or simplified accessory mounting. Optional magnetic piston version (MID40X60-M) supports position sensing.
- Precision alignment systems in semiconductor manufacturing
- Parallel gripper mechanisms in pick-and-place robots
- Valve actuation in cleanroom environments
- Medical device assembly line positioning
- Packaging machine clamping units
Installation guidelines:
Maintain ≤0.1mm perpendicularity between rod and load direction.
Use flexible couplings when lateral forces exceed 5N. Lubricate rods monthly
with ISO VG32 hydraulic oil in high-cycle applications (>1M cycles/year).
| Property | Property Value |
|---|---|
| sku | MID40X60 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <40mm> |
| Stroke | 60mm |
