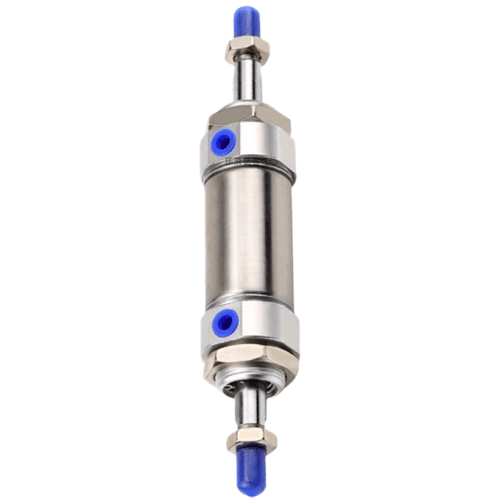

Airtac AirTAC MID Series Double Rod Mini Cylinder MID8X40
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID8X40 Double Rod Miniature Cylinder Technical Details
- Model: MID8X40
- Type: Double-acting twin rod cylinder
- Bore size: 8mm (0.31")
- Stroke: 40mm (1.57")
- Operating pressure: 0.05-1.0 MPa
- Max. pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer
- Mounting type: Basic (axial mounting holes)
- Port size: M5 (standard) with Rc1/8 adaptor option
- Piston material: Aluminum alloy with hard anodizing
- Rod material: Stainless steel SUS304
- Seal type: NBR wear-resistant seals
- Weight: 0.23kg (0.51lbs)
- Dimensions:
- Length: 135mm (5.31")
- Width: 20mm (0.79")
- Height: 20mm (0.79")
Ultra-compact dual-rod pneumatic actuator featuring symmetrical force output and precise linear motion control. The chrome-plated piston rod provides enhanced corrosion resistance, while the precision-machined aluminum barrel ensures smooth operation. Requires 40μm filtered air with recommended ISO VG32 lubricant.
- Precision positioning in SMT equipment
- Medical device actuation mechanisms
- Automated test probe positioning
- Compact packaging machine grippers
- Semiconductor wafer handling systems
Installation guidance:
Maintain 0.5mm minimum clearance between rod ends and mechanical stops.
For vertical mounting, use anti-rotation brackets (optional accessory MXQ8).
Lubricate every 500km stroke operation.
| Property | Property Value |
|---|---|
| sku | MID8X40 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <8mm> |
| Stroke | <40mm> |
