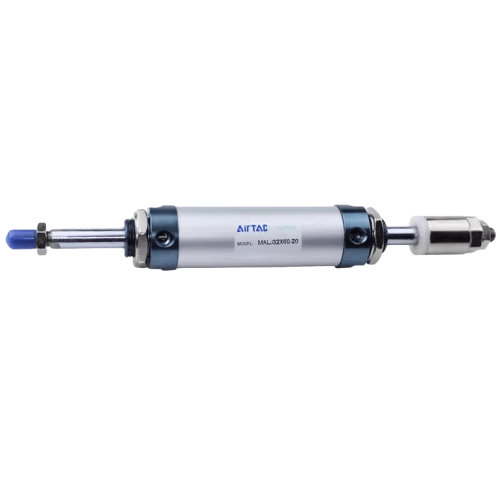

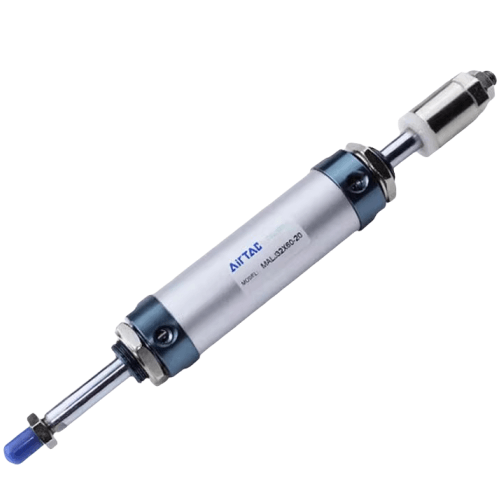

Airtac B01-MALJ Special Application Cylinder B01-MALJ25X150-50S
AirTAC B01-MALJ25X150-50S Compact Guide Cylinder Specifications
- Full model code: B01-MALJ25X150-50S
- Series: MALJ (Compact ISO Cylinder)
- Bore size: Ø25mm
- Stroke: 150mm (±1.5mm tolerance)
- Rod end: Male thread M10×1.25
- Operating pressure: 0.15–0.8 MPa
- Ambient temperature: -20℃ to 80℃
- Piston speed: 50–800 mm/s
- Cushioning: Adjustable pneumatic cushion (dual side)
- Mounting type: MA series basic mounting (front flange)
- Material: Aluminum alloy body (anodized), CRMo steel rod
- Seal material: NBR (nitrile rubber)
- Port size: G1/8 (ISO228/1 standard)
- Weight: 1.25kg (without accessories)
- Dimensions: 250mm(L) × 32mm(W) × 42mm(H)
- Repeat accuracy: ±0.5mm
- Protection class: IP54 (standard), IP67 optional
- Certifications: ISO6431, VDMA 24562
High-precision compact cylinder with space-saving design, featuring enhanced lateral load capacity through integrated guide rails. The dual adjustable cushioning system minimizes end-impact noise, while the hard chrome-plated piston rod resists corrosion in humid environments. Compatible with all major brand magnetic sensors (sensor groove width 6.2mm).
- Precision alignment in SMT component placement machines
- Vertical lifting mechanisms for automated packaging lines
- Clamping fixtures for CNC machining centers
- Material handling robots in cleanroom environments
- Automated test equipment positioning systems
Installation recommendations:
Maintain 0.05-0.1mm clearance between guide rail and load during mounting.
For vertical installations exceeding 45° angle, use counterbalance valves.
Lubricate with ISO VG32 hydraulic oil if operated below 0.3 MPa.
