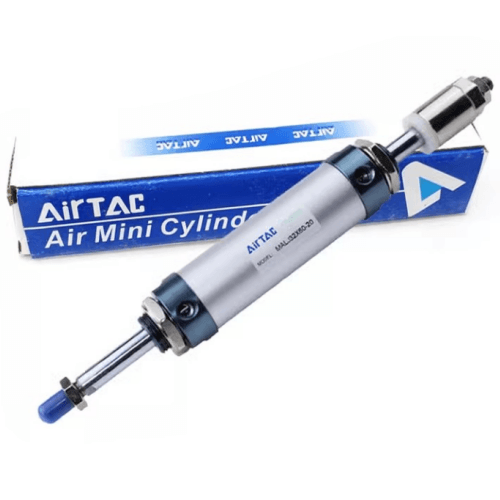

Airtac B01-MALJ Special Application Cylinder B01-MALJ32X40-40
$49.74
Regular price
$57.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
B01-MALJ32X40-40
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC B01-MALJ32X40-40 Special Purpose Cylinder Specifications
- Model: B01-MALJ32X40-40
- Type: Compact guided rod cylinder (double-acting)
- Bore size: 32mm
- Stroke: 40mm
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -10℃ to 80℃
- Cushioning: Adjustable rubber buffers (both ends)
- Mounting style: Front flange with tapped holes
- Port size: M5x0.8 (standard) / Optional NPT1/8
- Piston rod thread: M10x1.25
- Seal material: High-grade NBR with wear-resistant ring
- Weight: 0.82kg (excluding accessories)
- Dimensions:
- Total length (L): 144mm (at mid-stroke)
- Body width (W): 45mm
- Height (H): 48mm (including mounting flange)
- Rod end type: Female thread + locknut
- Max theoretical force: 257N @ 0.5MPa
- Speed range: 50–700mm/s
Precision-guided rod cylinder with space-saving design, featuring anti-rotation mechanism for stable linear motion. The dual piston seals and chrome-plated rod ensure leak-proof operation in humid environments. Optimized for vertical installations requiring precise stopping positions.
Ideal Applications:
- PCB handling robots (Z-axis movement)
- Pharmaceutical tablet press machines
- Automated test equipment positioning
- Food packaging line actuators
- Semiconductor wafer clamping systems
Installation tip:
Use alignment jig during mounting to ensure parallel rod movement.
Lubricate rod weekly with ISO VG32 hydraulic oil in high-cycle applications.
Performance Notes:
- Max side load capacity: 15N
- Recommended air quality: ISO 8573-1 class 3 (40μm filtration)
- Cycle life: 5,000km travel distance (under standard conditions)
| Property | Property Value |
|---|---|
| sku | B01-MALJ32X40-40 |
