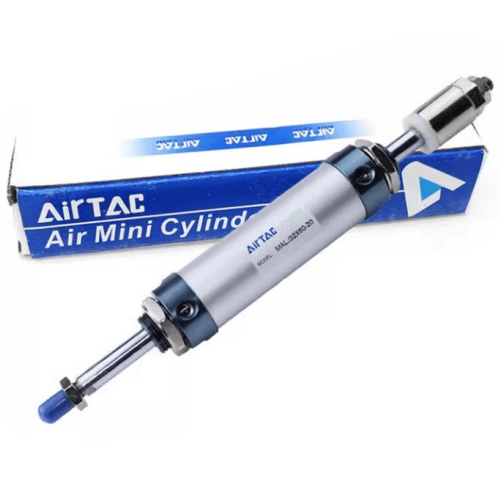

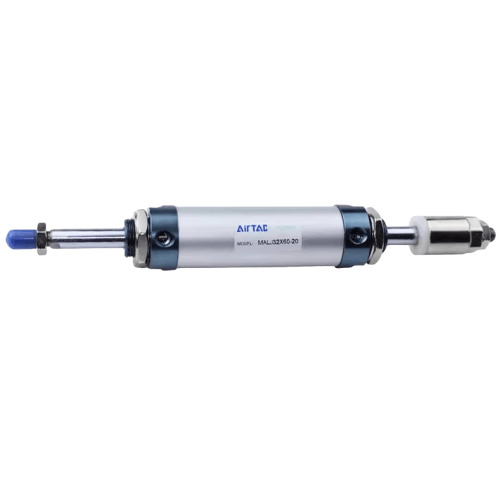

Airtac B01-MALJ Special Application Cylinder B01-MALJ32X50-30
AirTAC B01-MALJ32X50-30 Special Purpose Cylinder Specifications
- Model: B01-MALJ32X50-30
- Type: Compact ISO15552-style double-acting cylinder
- Bore size: 32 mm (±0.1mm manufacturing tolerance)
- Stroke: 50 mm (adjustable cushioning at both ends)
- Operating pressure: 0.05–1.0 MPa (7-145 PSI)
- Temperature range: -20℃ to 80℃ (dry air required below 0℃)
- Cushion type: Progressive rubber buffer + adjustable needle valve
- Port size: M5x0.8 (standard) with G1/8 adapter optional
- Piston rod thread: M12x1.25 (external)
- Material: Barrel - aluminum alloy AL6063; Piston rod - SUS304 stainless steel
- Seal material: NBR (Nitrile) with wear-resistant ring
- Weight: 1.23 kg (without accessories)
- Dimensions: 130mm(L) × 42mm(W) × 42mm(H) (minimum retracted length)
- Mounting: Front flange with 4xM5 holes (ISO 15552 MF1 pattern)
- Rod end: Female thread with anti-rotation flats
High-precision industrial cylinder optimized for space-constrained automation systems. Features a hard-anodized barrel surface (25μm thickness) for extended service life. The magnetic piston version (optional) supports position feedback when paired with proximity sensors. Includes built-in auto-lubrication design for maintenance-free operation up to 3,000km travel distance.
- Robotic welding fixture clamping mechanisms
- Pharmaceutical blister packaging machines
- CNC tool changer positioning systems
- Automotive window regulator test rigs
- High-speed sorting gate actuators (up to 5 cycles/sec)
Installation note:
Requires minimum 40μm filtered air. For vertical mounting,
use locknut (ASNU-5 kit recommended) to prevent rod rotation.
Allow 0.5mm thermal expansion clearance per meter of piping.
| Property | Property Value |
|---|---|
| sku | B01-MALJ32X50-30 |
