Airtac F-DSUB Cable F-DSUB25F200
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB

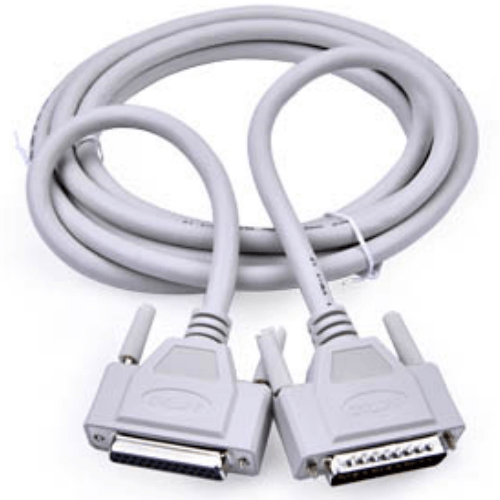

AirTAC F-DSUB25F200 D-Sub Cable Technical Details
- Model: F-DSUB25F200
- Type: High-density D-Subminiature cable assembly
- Connector type: 25-pin female D-sub (DB25F)
- Cable length: 200mm ±5mm (custom lengths available)
- Conductor material: Oxygen-free copper (OFC) 28AWG
- Insulation: PVC compound (UL-2651-80℃ rated)
- Voltage rating: 300V AC/DC max
- Current capacity: 3A per contact
- Contact resistance: ≤30mΩ
- Insulation resistance: ≥1000MΩ at 500VDC
- Temperature range: -25℃ to +80℃
- Bend radius: ≥4× cable diameter
- Flex life: >5,000 cycles (dynamic applications)
- Shielding: Dual-layer (aluminum foil + tinned copper braid)
- Impedance: 100Ω ±15% (characteristic)
- Propagation delay: ≤5ns/m
- Weight: 120g ±10g
- Dimensions: Ø6mm × 200mm (cable diameter × length)
- Termination: Gold-plated contacts (0.76μm min)
- Compliance: RoHS, REACH, UL/cUL recognized
Precision-engineered D-sub cable featuring military-grade crimping technology and anti-vibration contact design. The nickel-plated steel shell with chromate conversion coating provides EMI/RFI protection exceeding MIL-DTL-24308 standards. Includes strain relief boot for repetitive motion applications.
- Industrial PLC-to-HMI communication interfaces
- CNC machine tool I/O connections
- Legacy computer peripheral hookups (RS-232/422)
- Test bench instrumentation clusters
- Medical imaging equipment data links
- Avionics maintenance port connections
Installation guidelines:
Maintain minimum 50mm straight section before connector boot during routing.
Use torque-controlled screwdriver (0.4-0.6N·m) for mating hardware.
Avoid parallel runs with power cables exceeding 10A.
| Property | Property Value |
|---|---|
| sku | F-DSUB25F200 |
