Airtac F-DSUB Cable F-DSUB25M300
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB

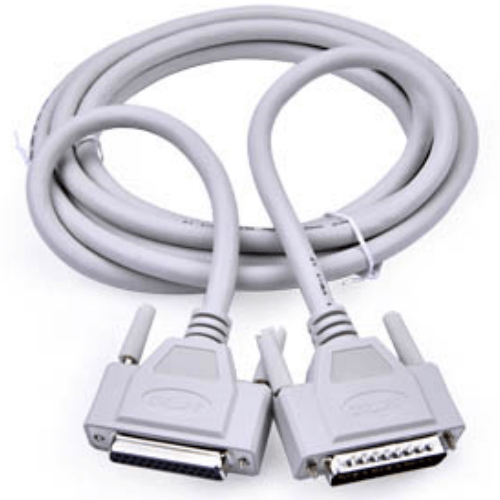

AirTAC F-DSUB25M300 Cable Assembly Technical Details
- Model: F-DSUB25M300
- Type: D-Subminiature shielded signal cable
- Cable length: 3000mm ±2% (3 meters)
- Wire gauge: 28AWG (0.08mm²) ×25 cores
- Conductor material: Oxygen-free copper (OFC)
- Insulation: PVC compound (600V rating)
- Shielding: Dual-layer aluminum mylar + tinned copper braid (85% coverage)
- Jacket: PUR (polyurethane) abrasion-resistant outer sleeve
- Voltage rating: 300V AC/DC max
- Current capacity: 1A per contact
- Temperature range: -40℃ to 80℃ (operating), -55℃ to 105℃ (storage)
- Protection rating: IP67 when mated
- Connector type: 25-pin D-sub male (plug) to female (socket)
- Contact plating: 15μ" gold over 50μ" nickel
- Shell material: Zinc alloy with chromate finish
- Mating cycles: ≥500 insertions
- Bend radius: ≥5× cable diameter (40mm)
- Certifications: CE, RoHS, REACH compliant
- Weight: 420g ±5% (including connectors)
- Dimensions: 3000mm(L) × 25mm(W) × 8mm(H) (flat cable profile)
High-density shielded cable assembly with military-grade connectors, engineered for noise-sensitive control signal transmission in industrial environments. Features 360° EMI/RFI protection through multi-layer shielding and precision-machined connectors with grounding claws. The oil-resistant PUR jacket withstands exposure to coolants and hydraulic fluids.
- PLC-to-solenoid valve bank communication in automated assembly lines
- CNC machine tool axis control signal transmission
- Robotic arm position feedback systems
- Packaging machinery sensor networks
- Test bench measurement equipment interfaces
Installation guidelines:
Maintain minimum 50mm separation from power cables. Use strain relief clamps
within 150mm of connectors. Apply dielectric grease (MIL-G-81322E) in high-humidity environments.
Torque mounting screws to 0.5Nm using crosshead driver.
