Airtac F-DSUB Cable F-DSUB25S300
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB

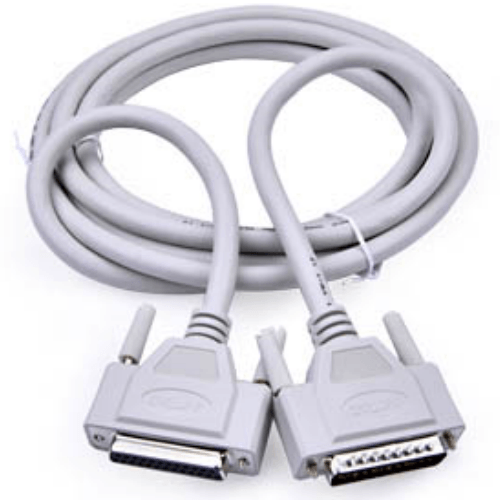

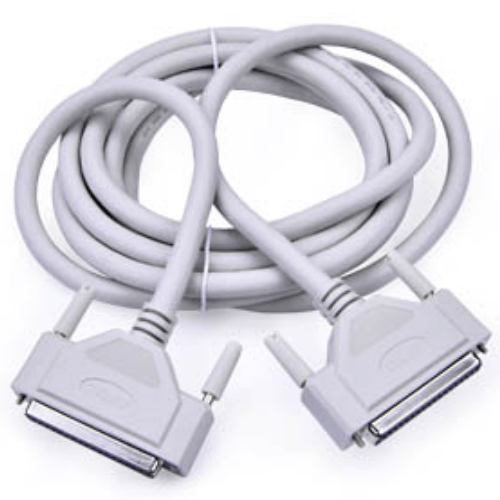

AirTAC F-DSUB25S300 D-Sub Cable Specifications
- Model: F-DSUB25S300
- Type: D-Subminiature shielded cable assembly
- Connector configuration: 25-pin male to 25-pin female
- Cable length: 300mm ±10mm (customizable up to 5m)
- Wire gauge: 28 AWG (0.08mm²) multi-strand tin-plated copper
- Shielding: Dual-layer (aluminum foil + 85% coverage tinned copper braid)
- Insulation: PVC with 500V RMS rated isolation
- Current rating: 1A per contact (3A max per ground pin)
- Voltage rating: 300V AC/DC max
- Contact resistance: ≤30mΩ initial
- Insulation resistance: ≥1000MΩ at 500VDC
- Temperature range: -40℃ to 105℃ (operating), -55℃ to 150℃ (storage)
- Mating cycles: ≥500 cycles
- Weight: 120g ±5% (including connectors)
- Cable diameter: 6.0mm ±0.3mm
- Connector dimensions:
- Male: 44.5mm(W) × 15.7mm(H)
- Female: 44.5mm(W) × 15.7mm(H)
- Compliance: RoHS, REACH, UL/cUL recognized
High-density shielded D-sub cable with gold-plated contacts (0.76μm min) for reliable signal transmission in EMI-sensitive environments. Features strain relief boots with 5N pull strength and color-coded thumbscrews (blue for male, red for female). The cable maintains 100Ω characteristic impedance for RS-422/485 compatibility.
- Industrial CNC machine control panels
- Automated test equipment (ATE) signal interfaces
- Robotic arm encoder connections
- Medical imaging device data ports
- Avionics maintenance port extensions
Installation guidelines:
Maintain minimum bend radius of 30mm during routing. Use shielded cable glands when passing through panels.
Torque mounting screws to 0.4-0.6N·m for proper grounding continuity.
| Property | Property Value |
|---|---|
| sku | F-DSUB25S300 |
