Airtac F-DSUB Cable F-DSUB37M300
$48.82
Regular price
$56.32
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-DSUB37M300
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Cable assemblies, including fiber optic cables and electrical cables, serve a wide range of critical functions in industrial applications. These components are primarily utilized for control systems installation, equipment interconnection, power transmission, and signal transmission, constituting indispensable components in modern industrial and daily applications. Due to their current-carrying nature, proper installation practices must be strictly followed to ensure operational safety and reliability.
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB
Installation note:
Maintain proper cable dressing with support intervals ≤300mm.
Use torque-controlled screwdriver (0.4-0.6N·m) for connector mating.
Avoid sharp bends near connector hoods.
Category: Solenoid Valve Coils | Brand: AirTAC | Series: F-DSUB

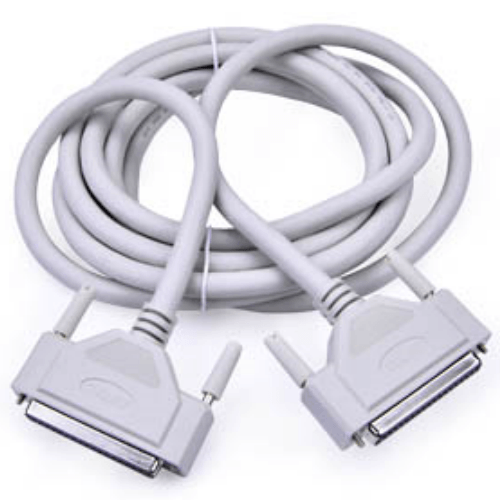

AirTAC F-DSUB37M300 D-Sub Cable Assembly Specifications
- Model: F-DSUB37M300
- Connector type: High-density 37-pin D-Sub (Male to Male)
- Cable length: 3000mm ±2% (3 meters)
- Conductor: 28 AWG stranded tinned copper (7/0.127mm)
- Insulation: PVC compound, OD 1.8mm ±0.1mm
- Shielding: Dual-layer (aluminum foil + 85% coverage tinned copper braid)
- Voltage rating: 300V AC/DC max
- Current capacity: 1.5A per contact @ 20℃
- Temperature range: -40℃ to 80℃ (operating), -55℃ to 105℃ (storage)
- Contact resistance: ≤20mΩ initial
- Insulation resistance: ≥1000MΩ @ 500VDC
- Bend radius: 8× cable diameter (minimum dynamic)
- Weight: 480g ±5% (including connectors)
- Dimensions:
- Connector A: 52.3mm(W) × 15.9mm(H)
- Connector B: 52.3mm(W) × 15.9mm(H)
- Cable diameter: 8.2mm ±0.3mm
- Certifications: RoHS compliant, UL/cUL recognized
High-reliability shielded D-Sub cable assembly with gold-plated contacts (0.76μm min) for signal integrity in EMI-sensitive environments. Features strain relief boots with 5mm retention collar and color-coded thumbscrews (blue anodized). Compatible with MIL-DTL-24308 mating interfaces.
Typical Applications:
- Industrial PLC I/O connections
- CNC machine tool control systems
- Robotic arm sensor networks
- Medical imaging equipment data transfer
- Avionics test bench wiring
Installation note:
Maintain proper cable dressing with support intervals ≤300mm.
Use torque-controlled screwdriver (0.4-0.6N·m) for connector mating.
Avoid sharp bends near connector hoods.
| Property | Property Value |
|---|---|
| sku | F-DSUB37M300 |
