Airtac F-HGS Sensor Mount F-HGS10X15H
$13.92
Regular price
$21.42
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HGS10X15H
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

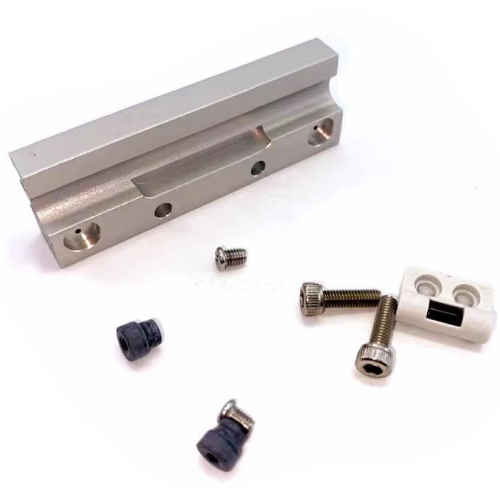

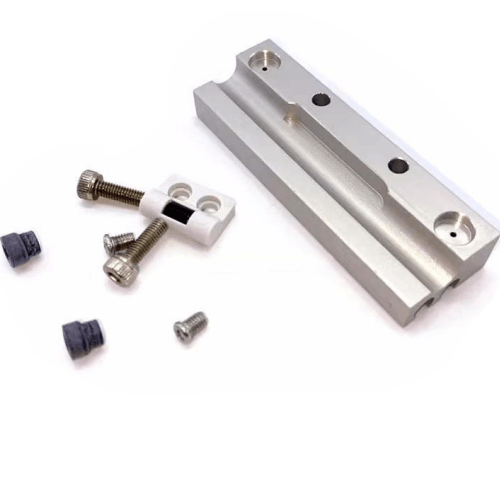

F-HGS Sensor Mounting Bracket Complete Assembly (with Magnet)
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
Installation protocol:
Torque mounting screws to 0.8-1.2N·m using cross-pattern tightening sequence.
Apply conductive grease on mating surfaces when used in high EMI environments.
Category: Magnetic Switch , Brand: AirTAC , Series: F-HGS
AirTAC F-HGS10X15H Sensor Mounting Bracket Technical Details
- Model: F-HGS10X15H
- Material: Aluminum alloy (6063-T5)
- Surface treatment: Anodized oxidation (black)
- Compatible sensor diameter: Φ8mm to Φ12mm
- Mounting hole spacing: 15mm ±0.2 (horizontal) × 10mm ±0.2 (vertical)
- Thread specifications: M4×0.7 mounting screws (2 places)
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 25mm(W) × 18mm(H)
- Operating temperature: -40℃ to +85℃
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Shock resistance: 100m/s² (3 axes)
- Corrosion protection: 96hr salt spray test compliant
Precision-engineered sensor bracket featuring anti-rotation grooves and dual-axis adjustability (±3°). The hexagonal cavity design allows tool-free sensor angle optimization. Includes stainless steel M4 fasteners with Loctite® pre-applied thread locker.
Primary Applications:
- Position detection in CNC tool changers
- Automated packaging line photoelectric sensors
- AGV collision avoidance system installations
- Robotic welding arm proximity switches
- Semiconductor wafer handling equipment
Installation protocol:
Torque mounting screws to 0.8-1.2N·m using cross-pattern tightening sequence.
Apply conductive grease on mating surfaces when used in high EMI environments.
| Property | Property Value |
|---|---|
| sku | F-HGS10X15H |
| Bore Diameter | <10mm> |
| Stroke | <15mm> |
