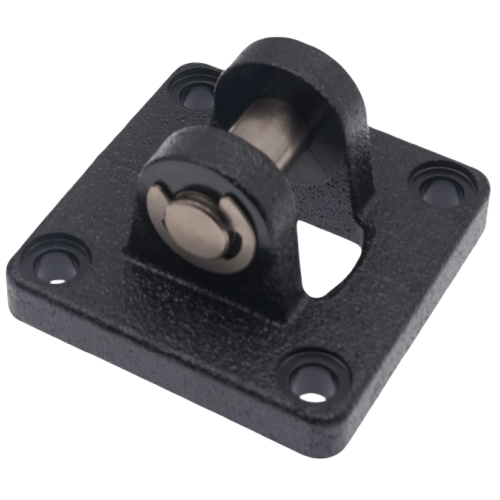

Airtac F-JSI-CB Double Ear Bracket Assembly F-JSI125CB
AirTAC F-JSI-CB Series Double Ear Bracket Kit F-JSI125CB Technical Details
- Model: F-JSI125CB (Complete Bracket Kit)
- Type: Standard double-ear mounting bracket with integrated hardware
- Material: 6063-T5 aluminum alloy
- Surface treatment: Black anodized oxidation (8-12μm)
- Compatible cylinder series: SDA/SI/SD series ø32-125mm
- Mounting hole spacing: 50±0.2mm (vertical) × 25±0.15mm (horizontal)
- Fastener torque: 4.5-5.5 N·m (M6 screws included)
- Load capacity: Max 1,200N static load (axial direction)
- Vibration resistance: 10-60Hz, amplitude ≤1.5mm
- Temperature range: -20℃ to 150℃ (continuous operation)
- Weight: 280±10g (including all mounting components)
- Dimensions: 125mm(L) × 40mm(W) × 25mm(H)
- Package contents: Bracket ×1, Hex socket screws M6×16 ×4, Flat washers ×4
Precision-engineered bilateral mounting solution featuring anti-rotation design with through-hole fixation. The hardened contact surfaces (HRC 40-45) ensure secure cylinder mounting while the chamfered edges prevent cable/wire abrasion. Includes corrosion-resistant stainless steel fasteners pre-applied with thread-locking compound.
- Multi-axis pneumatic actuator stabilization in robotic welding cells
- Vibration-prone environments like stamping machinery
- High-cycle automation equipment requiring precise axis alignment
- Cleanroom-compatible production lines (particle-free anodized surface)
- Modular pneumatic systems with frequent component reconfiguration
Installation protocol:
Apply 0.5-0.8Nm initial torque for preliminary alignment before final tightening.
Use torque wrench with ±2% accuracy. Parallelism tolerance between mounting surfaces
should not exceed 0.1mm/100mm.
| Property | Property Value |
|---|---|
| sku | F-JSI125CB |
