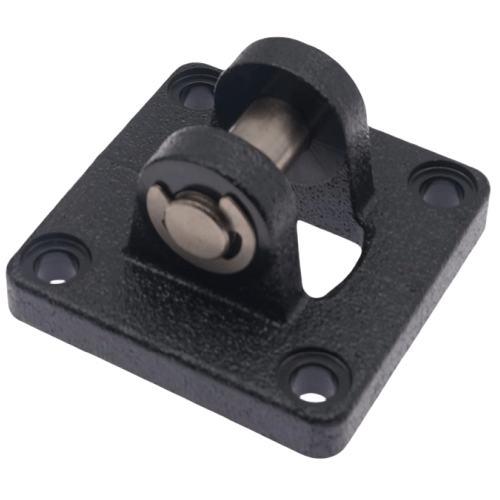

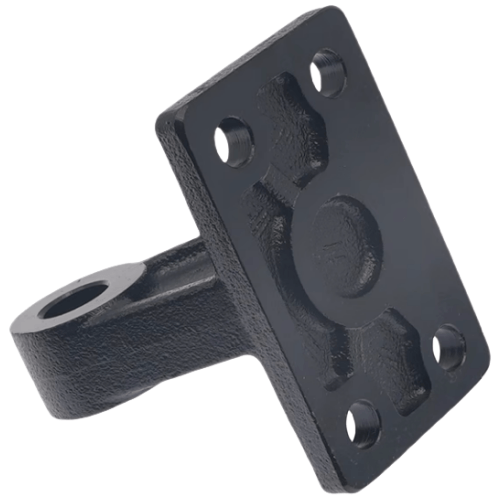

Airtac F-JSI-CB Double Ear Bracket Assembly F-JSI80CB
AirTAC F-JSI-CB Double Ear Mounting Bracket Complete Kit - F-JSI80CB Technical Details
- Model: F-JSI80CB (Complete Bracket Kit)
- Material: Aluminum alloy ADC12 with anodized surface treatment
- Compatible cylinder bore: Ø80mm series
- Mounting hole pattern: 140mm center distance between ears
- Thread specifications: M8×1.25 mounting screws (4 places)
- Bracket thickness: 12mm at load-bearing points
- Surface hardness: HV 120±15 (anodized layer)
- Weight: 0.82kg ±3% (including all hardware)
- Dimensions: 162mm(L) × 86mm(W) × 28mm(H)
- Operating temperature: -20℃ to 150℃ (static load conditions)
- Max lateral load capacity: 1,200N (axial direction)
- Corrosion resistance: 96hr salt spray test compliant
- Kit contents: Bracket body, M8×25 hex socket screws (4pcs), flat washers (4pcs), lock washers (4pcs)
Heavy-duty dual-ear mounting solution designed for precise alignment and vibration damping in high-cycle pneumatic systems. Features CNC-machined locating surfaces with ±0.1mm parallelism tolerance, ensuring optimal force distribution. The asymmetric ear design allows flexible orientation for front/rear mounting in confined spaces.
- Industrial robotic arm joint actuators
- High-speed packaging machine cylinder fixation
- Plastic injection molding machine ejector mechanisms
- Automated conveyor stop cylinder installations
- Press machine tooling guides
Installation protocol:
Apply 25-30N·m torque using calibrated wrench during assembly.
Use shim plates (sold separately) when mounting on uneven surfaces.
Perform alignment verification with dial indicator after installation.
| Property | Property Value |
|---|---|
| sku | F-JSI80CB |
