Airtac F-M-U Rod End Joint Assembly Kit F-M20X150U
$25.55
Regular price
$33.05
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-M20X150U
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

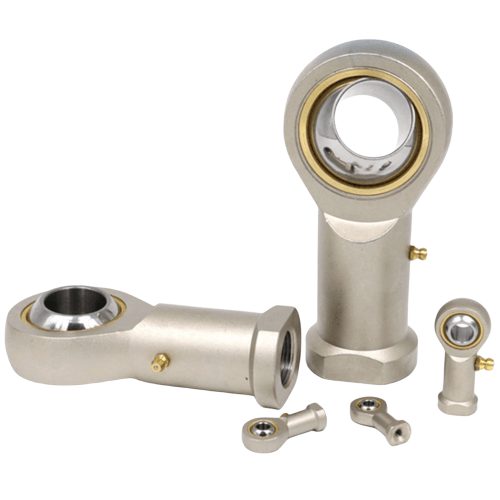

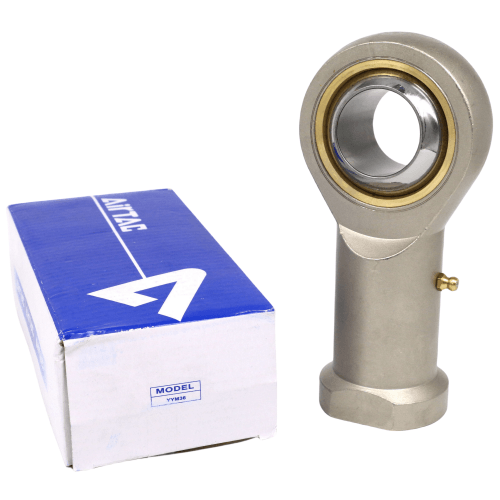

**Category:** Cylinder Rod Eye Joint
**Brand:** Airtac
**Series:** F-M-U
**Product Description:**
Airtac's F-M-U Series Cylinder Rod Eye Joints are precision-engineered for seamless integration with pneumatic cylinders, ensuring reliable alignment and load distribution in automation systems. Featuring hardened steel construction, corrosion-resistant coatings, and standardized ISO/VDMA mounting interfaces, these eye joints deliver exceptional durability and vibration resistance. Designed for high-cycle applications, they support smooth angular compensation (±3°) while maintaining rigid axial stability. The pre-lubricated spherical bearing design minimizes friction, extending service life in demanding industrial environments. Compatible with ISO 6432 and ISO 15552 cylinder standards.
Maintenance protocol:
Relubricate every 2,000 operating hours using lithium-complex grease (NLGI #2).
Avoid axial overloading beyond 10% of rated capacity. Torque jam nut to 120-140N·m
using crisscross pattern tightening.
AirTAC F-M-U Series Rod End Bearing Kit F-M20X150U Technical Details
- Full model designation: F-M20X150U
- Thread specification: M20×1.5 male thread (metric coarse)
- Shank length: 150mm ±0.3mm tolerance
- Ball diameter: 28mm (chrome-plated steel)
- Load capacity: 4,500N static / 2,200N dynamic
- Max angular deflection: ±15° permanent / ±25° momentary
- Material composition: SCr420 alloy steel body + PA66 composite bearing
- Surface treatment: Black oxide coating (MIL-DTL-13924D Class 4 equivalent)
- Operating temperature: -30℃ to +120℃ continuous
- Weight: 0.68kg (including mounting hardware)
- Package dimensions: 320mm(L) × 85mm(W) × 45mm(H) blister pack
- Lubrication: Pre-packed with Molykote PG-65 grease
- ISO compliance: 12257-1 industrial rod ends standard
Heavy-duty self-lubricating rod end bearing with integrated steel backing flange. Features double-sealed raceway design preventing contamination ingress while maintaining ±1.5° axial play for misalignment compensation. Includes corrosion-resistant spring washer and M20 jam nut.
Industrial Implementation:
- Hydraulic cylinder pivot mounts in construction machinery
- Robotic arm articulation joints (6-axis applications)
- Conveyor system tension rod connections
- Agricultural implement linkage systems
- CNC machine tool counterbalance mechanisms
Maintenance protocol:
Relubricate every 2,000 operating hours using lithium-complex grease (NLGI #2).
Avoid axial overloading beyond 10% of rated capacity. Torque jam nut to 120-140N·m
using crisscross pattern tightening.
| Property | Property Value |
|---|---|
| sku | F-M20X150U |
| Thread Pitch | 1.5mm |
| Thread Specification | M20 |
