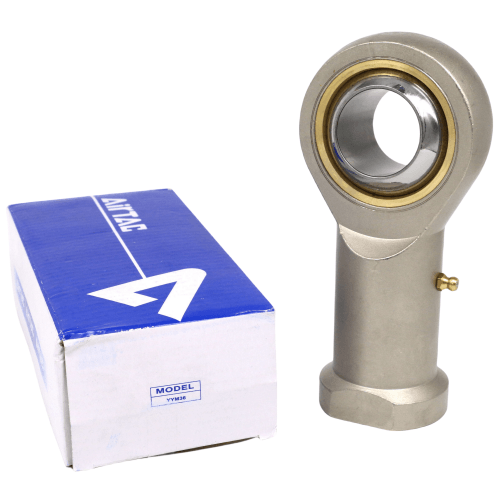

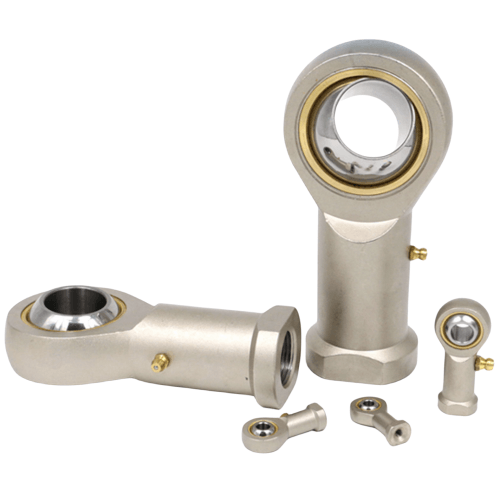

Airtac F-M-U Rod End Joint Assembly Kit F-M36X200U
AirTAC F-M-U Series F-M36X200U Rod End Bearing Kit Specifications
- Model: F-M36X200U
- Type: Female threaded rod end bearing (self-lubricating)
- Thread specification: M36×1.5 (metric fine thread)
- Rod length: 200mm (±0.5mm tolerance)
- Rod diameter: Φ16mm (chrome-plated steel)
- Bearing material: Steel core + PA66 composite liner
- Static load capacity: 7500N
- Dynamic load capacity: 3800N
- Angular misalignment: ±25°
- Installation hole: M16 through hole
- Temperature range: -30℃ to +120℃
- Surface treatment: Electro-galvanized body + anti-corrosion coating
- Weight: 820g ±2%
- Dimensions: 250mm(L) × 65mm(W) × 65mm(H)
Heavy-duty rod end joint with integrated steel-Polymer articulation, designed for high-load pivoting applications. Features maintenance-free operation through embedded lubricant reservoirs in the composite liner. Includes pre-assembled lock nut (DIN985 class 8) and anti-vibration washers.
- Hydraulic cylinder linkage systems
- Injection molding machine ejector mechanisms
- Construction equipment steering linkages
- Automated warehouse conveyor pivots
- Agricultural machinery implement connections
Installation guidance:
Apply 25-35N·m torque during assembly using a flank-contact wrench.
Perform alignment check after 50 operating cycles. Avoid simultaneous
axial and radial overload beyond 80% of rated capacity.
| Property | Property Value |
|---|---|
| sku | F-M36X200U |
| Thread Pitch | <2.0mm> |
| Thread Specification | M36x1.5 |
