Airtac F-M-U Rod End Joint Assembly Kit F-M8X125U

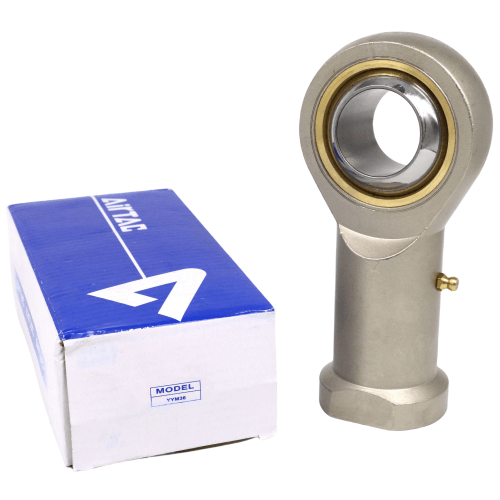

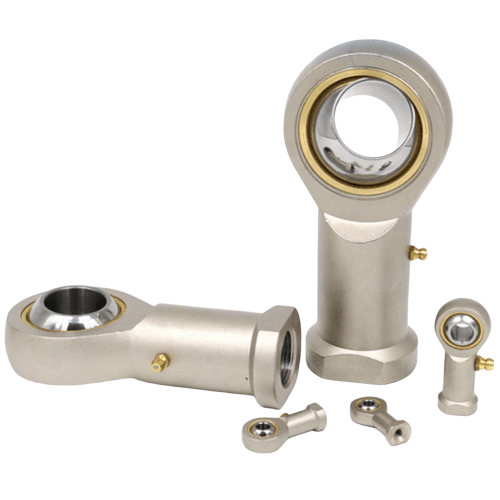

AirTAC F-M-U Series F-M8X125U Rod End Bearing Joint Full Kit Specifications
- Model: F-M8X125U
- Type: Maintenance-free spherical rod end bearing assembly
- Thread specification: M8×1.25 (ISO metric fine thread)
- Rod length: 125±0.5mm
- Material:
- Body: Carbon steel SCr420 with black oxide coating
- Ball joint: Case-hardened steel HRC58-62
- Bearing liner: Fiber-reinforced phenolic resin
- Max static radial load: 850N
- Max dynamic load: 320N (at 100rpm)
- Angular misalignment: ±15° permanent / ±25° momentary
- Temperature range: -30℃ to +110℃ (dry) / -10℃ to +80℃ (lubricated)
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Weight: 118g ±2%
- Dimensions:
- Total length: 125mm
- Mounting width: 22mm (hex flats)
- Ball diameter: 14mm
- Bore diameter: 8mm (inner thread depth 12mm)
- ISO compliance: 12258-1 industrial standard
Pre-assembled rod end kit with integrated dust seal, designed for maintenance-free operation in high-cycle pneumatic systems. Features self-lubricating composite bearing surface and corrosion-resistant coatings. Includes integrated lock nut (DIN 985) and anti-rotation flats for tool engagement during installation.
- Pneumatic cylinder rod end articulation
- Conveyor system linkage assemblies
- Robotic arm wrist joints
- Textile machinery tensioning systems
- Automated door hinge mechanisms
Installation protocol:
Apply thread locker (LOCTITE 243 recommended) on male threads.
Torque to 12-15N·m using crowfoot wrench on hex flats.
Avoid side impact during operation. Relubricate every 50,000 cycles
with PTFE-based grease in high-contamination environments.
| Property | Property Value |
|---|---|
| sku | F-M8X125U |
| Thread Pitch | 1.25mm |
| Thread Specification | M8 |
