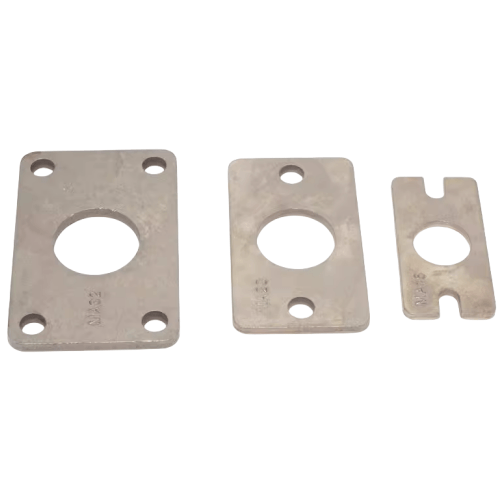

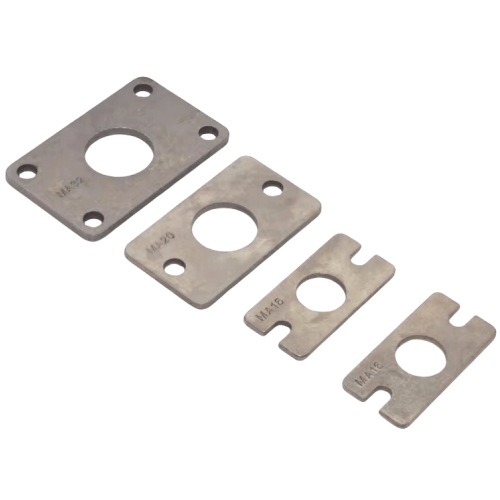

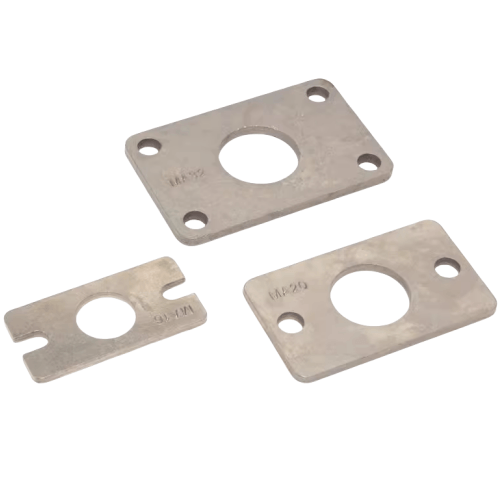

Airtac F-MA-FA Front Flange Mounting Plate Kit F-MA20FA
$4.87
Regular price
$12.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MA20FA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC F-MA-FA Front Flange Mounting Plate Kit F-MA20FA Specifications
- Model: F-MA20FA
- Type: Pre-assembled front flange mounting kit
- Material: 6063-T5 aluminum alloy (hard anodized surface)
- Mounting pattern: ISO 15552 standard compatible
- Bore size compatibility: 20mm cylinders
- Thread specifications: M5×0.8 mounting screws (4x)
- Surface hardness: HV 400±50
- Weight: 235±10g
- Dimensions: 76mm(L) × 42mm(W) × 12mm(H)
- Mounting hole spacing: 60mm longitudinal pitch
- Temperature range: -20℃ to 150℃
- Surface roughness: Ra 0.8μm max
- Corrosion resistance: 96hr salt spray test compliant
Precision-machined mounting solution for cylinder stabilization, featuring anti-vibration design with integrated shock-absorbing pads. Includes pre-installed locking nuts and alignment pins for tool-free installation. Anodized finish provides wear resistance in high-cycle applications.
Typical Applications:
- Linear actuator mounting in packaging machinery
- Pneumatic press vertical support systems
- Robotic arm joint reinforcement
- Conveyor belt tensioning mechanisms
- Semiconductor handling equipment frames
Installation protocol:
Apply 2.5-3.0N·m torque during screw tightening. Use included nylon washers
for electrical insulation in sensitive environments. Compatible with
AirTAC MA/MAL/MAB series 20mm bore cylinders.
Note: Includes 4x stainless steel M5x16 hex socket screws,
2x alignment dowels (φ4×8mm), and 4x vibration-damping rubber pads (Shore A 70±5).
| Property | Property Value |
|---|---|
| sku | F-MA20FA |
