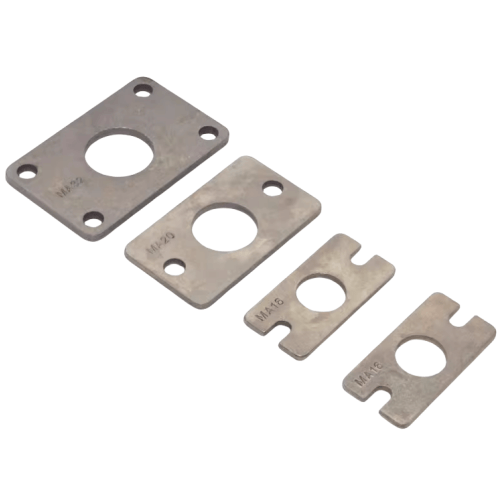

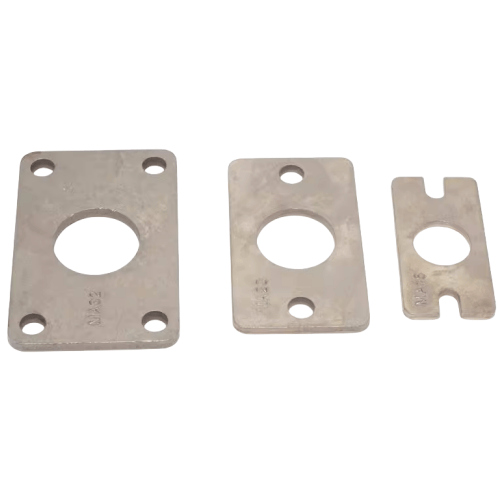

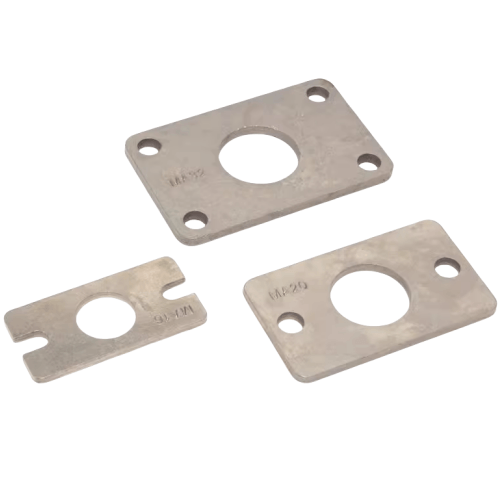

Airtac F-MA-FA Front Flange Mounting Plate Kit F-MA25FA
AirTAC F-MA-FA Front Flange Mounting Plate Kit F-MA25FA Specifications
- Model: F-MA25FA (Full Kit with Mounting Hardware)
- Compatible Cylinder Series: MA/MAF 25mm Bore
- Material: Aluminum alloy ADC12
- Surface Treatment: Black anodized (8-12μm thickness)
- Mounting Hole Pattern: 32mm × 32mm square (ISO 15552 standard)
- Thread Specifications: M5 × 0.8 mounting screws (4 places)
- Center Bore Diameter: φ25.5mm (+0.1/-0 mm tolerance)
- Weight: 280g ±5% (including fasteners)
- Dimensions: 60mm(L) × 60mm(W) × 12mm(H)
- Fastener Torque: 2.5-3.0 N·m (recommended)
- Operating Temperature: -20°C to 100°C
- Corrosion Resistance: 96hr salt spray test passed
Precision-machined front flange kit designed for rigid cylinder mounting in industrial automation systems. Features counterbored screw holes for flush fastener installation and laser-etched alignment marks. Includes 4x M5×16 hex socket cap screws and spring washers pre-packed in anti-corrosion oil paper.
- Linear actuator mounting in pick-and-place robots
- Pneumatic press tooling plate installations
- Conveyor system pusher mechanisms
- Packaging machine end-effector support
- Semiconductor handling equipment
Installation protocol:
Apply medium-strength thread locker (Loctite 243 equivalent) and
tighten crosswise in 3 stages (30% → 70% → 100% torque).
Verify perpendicularity with 0.05mm feeler gauge maximum deviation.
| Property | Property Value |
|---|---|
| sku | F-MA25FA |
