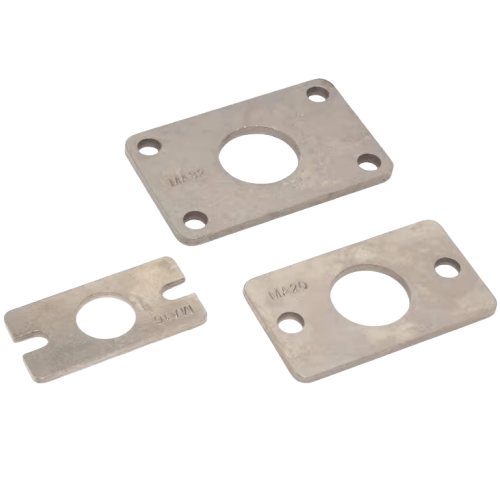

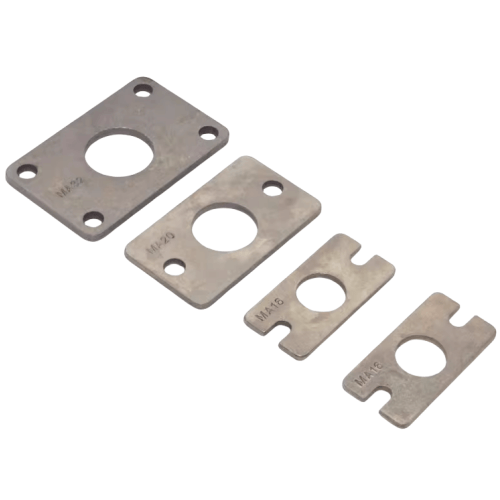

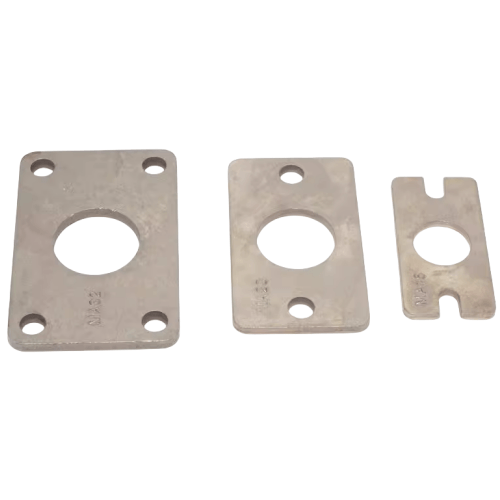

Airtac F-MA-FA Front Flange Mounting Plate Kit F-MA32FA
AirTAC F-MA-FA Front Flange Mounting Plate Kit F-MA32FA Technical Details
- Model Code: F-MA32FA
- Material: 6063-T5 aluminum alloy (hard anodized surface)
- Mounting Pattern: ISO 15552/VDMA 24562 standard
- Compatible Cylinder Bore: Ø32mm series
- Flange Type: Square front flange with 4-corner mounting
- Hole Spacing: 50mm × 50mm (center-to-center)
- Thread Specifications: M6×1.0 mounting holes (4 places)
- Surface Finish: Black anodized (12-15μm thickness)
- Weight: 278g ±5g
- Dimensions: 72mm(L) × 72mm(W) × 12mm(H)
- Temperature Range: -20℃ to 150℃ (static operation)
- Vibration Resistance: ≤49 m/s² (10-60Hz frequency range)
- Mounting Torque: 4.5-5.5 N·m (M6 screws)
Precision-machined flange plate with integrated shock-absorbing design, featuring diamond-knurled anti-rotation surfaces. Includes pre-installed M6×1.0 stainless steel studs and vibration-resistant flange nuts. Compatible with ISO-standard pneumatic cylinders requiring side load support.
- Robotic arm end-effector mounting systems
- Packaging line vertical cylinder installations
- CNC machine tool clamping mechanisms
- Automated assembly station positioning units
- Material handling equipment shock absorption setups
Installation guidance:
Apply thread-locking compound to studs before assembly.
Ensure parallel alignment within 0.1mm/m tolerance during mounting.
Use 0.05mm feeler gauge to verify full contact with cylinder base.
