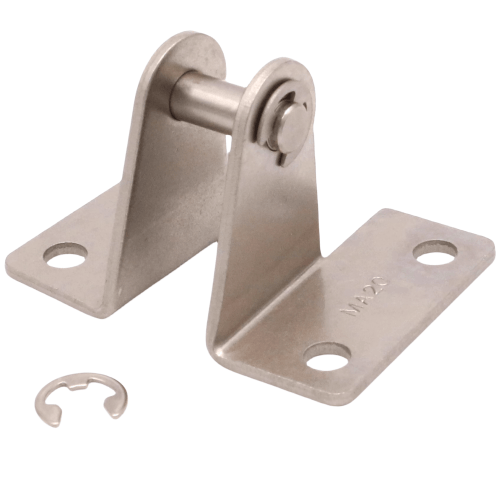

Airtac F-MA-SDB Rear Hinge Fixed Bracket Assembly F-MA32SDB
$6.01
Regular price
$13.51
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MA32SDB
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AIR TAC
Series: F-MA-SDB
Product: Rear Hinge Mounting Bracket Complete Kit
The F-MA-SDB Rear Hinge Mounting Bracket is a precision-engineered pneumatic cylinder accessory designed for robust pivot mounting applications. Featuring standardized mounting interfaces and optimized structural rigidity, this ready-to-install kit ensures secure alignment and stability for AIR TAC cylinder series. The assembly includes pre-configured hinge brackets, fasteners, and alignment components, streamlining integration while maintaining compliance with industrial pneumatic system requirements.
Installation note:
Apply thread-locking compound (medium strength) to fasteners during assembly.
Lubricate hinge pin with ISO VG32 hydraulic oil before operation.
Maximum angular velocity ≤30°/sec for optimal bearing life.
AirTAC F-MA-SDB Series Rear Hinge Bracket Kit (F-MA32SDB) Details
- Model: F-MA32SDB (F-MA32SDB)
- Type: Rear hinge fixed bracket assembly kit
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized black (standard corrosion resistance)
- Mounting hole spacing: 32mm (center-to-center)
- Compatible cylinder series: MA series Ø32mm bore
- Operating temperature: -20℃ to 80℃
- Max lateral load capacity: 150N (static)/90N (dynamic)
- Weight: 0.38kg ±2% (complete kit)
- Dimensions: 78mm(L) × 42mm(W) × 25mm(H) (main bracket body)

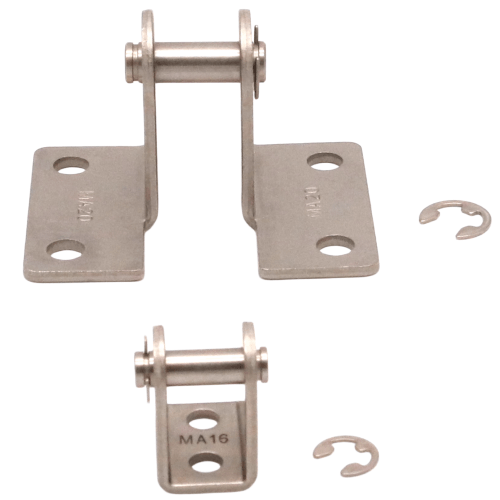

- Included components: Bracket base, hinge pin, E-clip, mounting screws (M5×10)
- Torque specification: 2.0-2.5N·m for M5 fasteners
Pre-assembled mounting solution designed for MA series cylinders requiring rear pivot motion. Features precision-machined alignment slots and wear-resistant bushings for smooth angular adjustment (±5°). Includes stainless steel hardware for corrosion resistance in humid environments.
Typical Applications:
- Rotary clamping mechanisms in CNC fixtures
- Oscillating actuator mounts for packaging conveyors
- Pneumatic press brake tooling alignment systems
- Automated door hinge assemblies
- Material handling pivot points
Installation note:
Apply thread-locking compound (medium strength) to fasteners during assembly.
Lubricate hinge pin with ISO VG32 hydraulic oil before operation.
Maximum angular velocity ≤30°/sec for optimal bearing life.
Environment: Not recommended for continuous submersion or
chemical splash zones. Compatible with standard industrial lubricants
(petroleum-based or synthetic). Replace E-clip if disassembled more than 3 times.
| Property | Property Value |
|---|---|
| sku | F-MA32SDB |
