Airtac F-MA-SDB Rear Hinge Fixed Bracket Assembly F-MA40SDB
$6.47
Regular price
$13.97
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MA40SDB
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AIR TAC
Series: F-MA-SDB

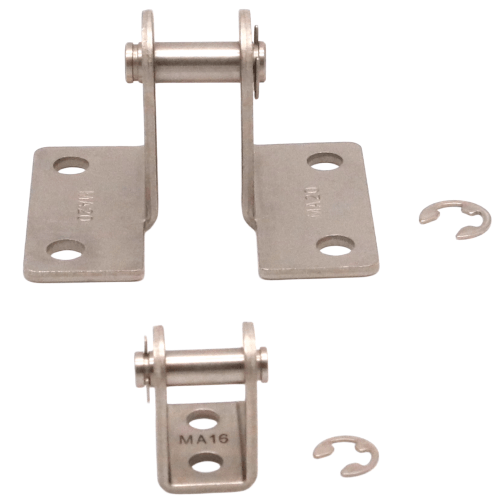

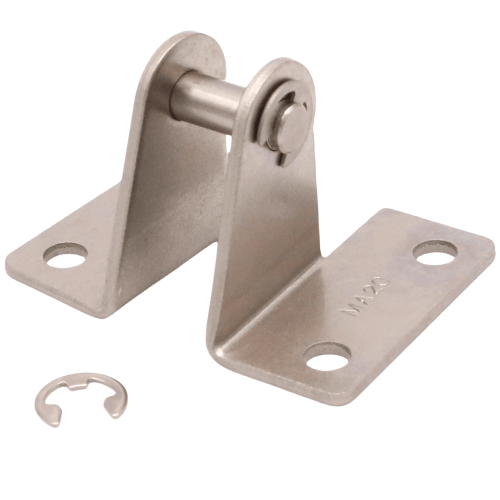

Product: Rear Hinge Mounting Bracket Complete Kit
The F-MA-SDB Rear Hinge Mounting Bracket is a precision-engineered pneumatic cylinder accessory designed for robust pivot mounting applications. Featuring standardized mounting interfaces and optimized structural rigidity, this ready-to-install kit ensures secure alignment and stability for AIR TAC cylinder series. The assembly includes pre-configured hinge brackets, fasteners, and alignment components, streamlining integration while maintaining compliance with industrial pneumatic system requirements.
Installation protocol:
Apply 242 medium-strength thread locker on fasteners.
Torque in cross pattern to 4.8N·m ±5%.
Perform alignment check with 0.02mm feeler gauge.
AirTAC F-MA-SDB Rear Hinge Bracket Kit F-MA40SDB Technical Details
- Full model designation: F-MA40SDB
- Bracket type: Rear hinge fixed mount with integrated stabilizer
- Compatible cylinder series: MA series Ø40mm bore
- Material: Anodized aluminum alloy (AL6063-T5)
- Surface treatment: Hard oxidation (15-25μm thickness)
- Mounting hole spacing: 30±0.2mm (horizontal) × 56±0.3mm (vertical)
- Fastener specs: M6×16mm stainless steel screws included (Qty 4)
- Static load capacity: 120kgf (axial), 85kgf (radial)
- Vibration resistance: 5-2000Hz, 15G acceleration
- Operating temperature: -40℃ to 150℃ (non-lubricated)
- Weight: 385g ±2%
- Dimensions: 78mm (L) × 62mm (W) × 34mm (H)
- Corrosion rating: 96hrs salt spray test compliant
- Installation torque: 5.4N·m max (for mounting bolts)
Heavy-duty pivot bracket designed for precision alignment in multi-axis pneumatic systems. Features anti-backlash shim adjustment and thermal expansion compensation slots. The diamond-knurled contact surface prevents component slippage under high vibration conditions.
Implementation Scenarios:
- Robotic welding arm joint reinforcement
- Automated packaging line cylinder mounting
- CNC machine tool pneumatic counterbalance systems
- High-cycle food processing equipment (FDA-compliant grease option available)
- Semiconductor wafer handling robotics
Installation protocol:
Apply 242 medium-strength thread locker on fasteners.
Torque in cross pattern to 4.8N·m ±5%.
Perform alignment check with 0.02mm feeler gauge.
Lubrication:
Use ISO VG32 hydraulic oil for pivot points.
Re-lubricate every 500,000 cycles or 6 months in clean environments.
| Property | Property Value |
|---|---|
| sku | F-MA40SDB |
