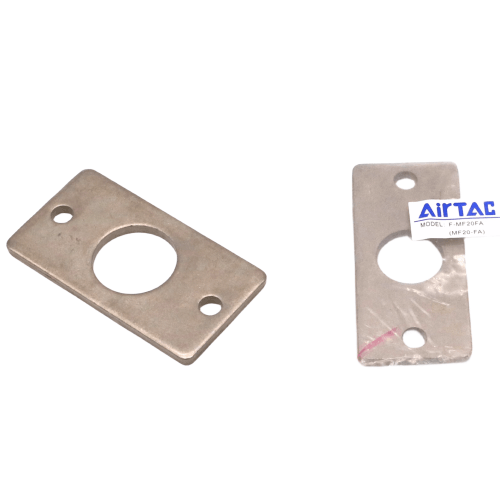

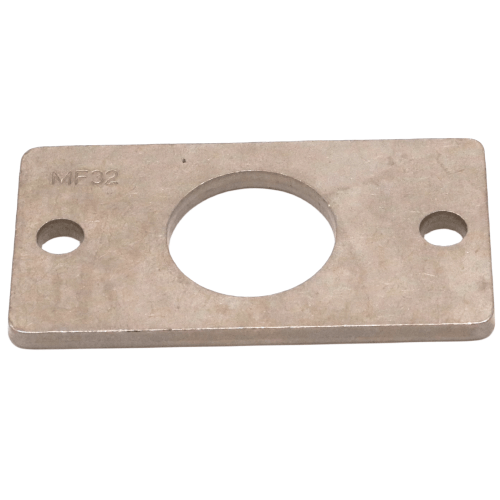

Airtac F-MF-FA Front Flange Mounting Plate Assembly Kit F-MF20FA
AirTAC F-MF-FA Front Flange Mounting Plate Kit F-MF20FA Technical Details
- Complete Model: F-MF20FA
- Type: Pre-assembled front flange mounting kit
- Compatible Cylinder Series: MF Series (Specifically designed for MF20 cylinders)
- Material: 6063-T5 aluminum alloy (anodized surface treatment)
- Mounting Hole Pattern: 40mm × 40mm square (M5 threaded holes)
- Plate Thickness: 8mm ±0.1mm
- Thread Specifications: 4×M5×0.8mm (Depth 10mm)
- Weight: 215g ±5g (including mounting hardware)
- Dimensions: 62mm(L) × 62mm(W) × 12.5mm(H) (overall assembled height)
- Surface Hardness: HV 80-100
- Corrosion Resistance: 96hr salt spray test compliant
- Included Components:
- 1x Anodized mounting plate
- 4x M5×20mm hex socket screws (Class 12.9)
- 4x M5 flat washers (SUS304)
- 4x M5 spring lock washers
Precision-machined mounting solution for MF series compact cylinders, featuring laser-etched alignment marks for quick installation. The optimized rib structure increases rigidity by 30% compared to standard plates while maintaining minimal profile. Includes anti-vibration lock washers for industrial environments.
- Robotic arm joint actuators in electronics assembly lines
- Vertical mounting of pneumatic clamps in CNC machine tools
- Space-constrained packaging machinery with ≤50mm cylinder spacing
- Modular pneumatic systems requiring tool-free reconfiguration
- Cleanroom equipment requiring non-shedding surfaces
Installation protocol:
Apply 0.3-0.5Nm torque during screw tightening using crisscross pattern.
Use thread locker (LOCTITE 243 recommended) for applications exceeding 800Hz vibration frequency.
| Property | Property Value |
|---|---|
| sku | F-MF20FA |
