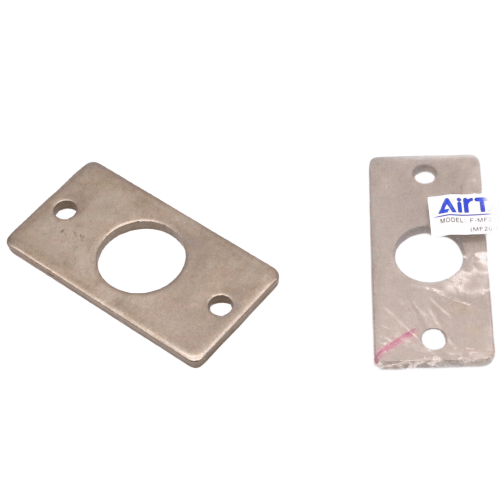

Airtac F-MI-FA Front Flange Mounting Plate Assembly Kit F-MI12FA
AirTAC F-MI-FA Front Flange Mounting Plate Kit F-MI12FA Technical Details
- Model: F-MI12FA
- Material: Aluminum alloy ADC12 (anodized surface)
- Mounting hole pattern: M5×4 holes (20mm spacing)
- Compatible cylinder series: MI series Ø12mm bore
- Surface treatment: Black anodization (Alodine 1200S)
- Weight: 0.15kg ±2%
- Dimensions: 40mm(L) × 32mm(W) × 8mm(H)
- Thread specifications: M5×0.8 mounting threads (4 places)
- Temperature tolerance: -20℃ to 80℃
- Surface hardness: HV 400-450
- Package contents: Mounting plate ×1, M5×12 screws ×4, washers ×4
Precision-machined front flange adapter for rigid cylinder mounting in confined spaces. Features CNC-milled alignment slots and corrosion-resistant coating. Includes pre-installed thread-locking compound on fasteners for vibration resistance. Compatible with ISO 6432 standard cylinder mounting patterns.
- Robotic arm joint actuators
- PCB assembly line positioning systems
- Semiconductor wafer handling equipment
- Textile machinery linear motion units
- Automated test fixture mounting solutions
Installation protocol:
Clean mounting surface with IPA before assembly. Torque screws to 0.8-1.2N·m
in crisscross pattern. Verify cylinder rod alignment within ±0.1mm using dial indicator.
