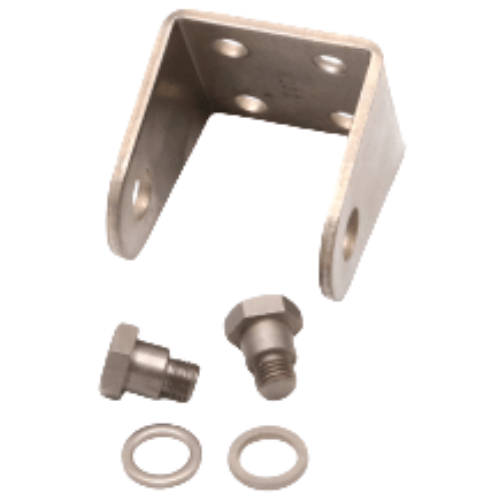

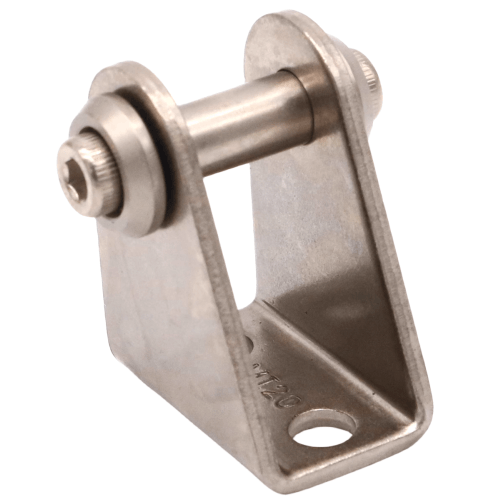

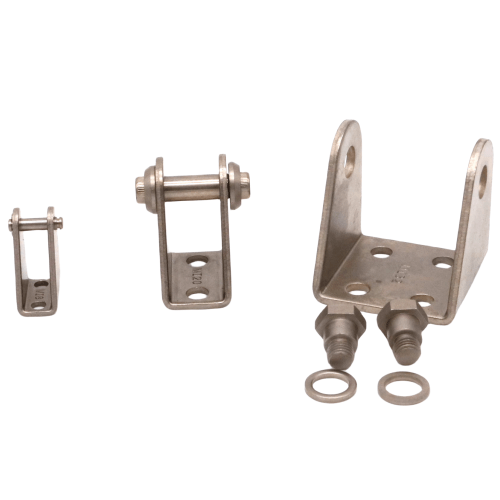

Airtac F-MI-SDB Rear Hinge Bracket Assembly F-MI40SDB
$6.47
Regular price
$13.97
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-MI40SDB
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Cylinder Accessories
Brand: AIRTOK
Series: F-MI-SDB Rear Hinged Mounting Bracket Complete Assembly
Description:
The AIRTOK F-MI-SDB Series Rear Hinged Mounting Bracket is a precision-engineered cylinder accessory designed for secure and adjustable mounting of pneumatic cylinders in industrial automation systems. Featuring a robust rear pivot structure with ±3° angular compensation, this complete assembly ensures optimal alignment and vibration damping under dynamic loads. The kit includes pre-assembled hardened steel brackets, high-tensile fasteners, and self-lubricating bushings compliant with ISO 6432 standards for seamless integration with modular pneumatic components. Ideal for multi-axis applications requiring torsional stability and repeatable positioning accuracy.
Mounting guidance:
Apply thread locker (medium strength) on mounting screws.
Ensure hinge pivot axis aligns with cylinder stroke centerline (±0.5mm).
Max allowable angular deviation: 2° during dynamic operation.
AirTAC F-MI-SDB Rear Hinge Bracket Kit F-MI40SDB Technical Details
- Full model designation: F-MI40SDB
- Base material: Aluminum alloy ADC12 (die-cast)
- Surface treatment: Black anodized oxidation
- Max load capacity: 18kg vertical / 12kg horizontal
- Mounting hole pattern: 40mm × 40mm square configuration
- Rail compatibility: For SDA/SDB series 40mm width cylinders
- Fastener specs: M6×12 stainless steel screws included (Qty:4)
- Operating temp range: -20℃ to 80℃
- Weight: 1.2kg (complete kit with hardware)
- Dimensions: 150mm(L) × 80mm(W) × 45mm(H)
- Vibration resistance: ≤15Hz frequency, 1.5mm amplitude
- Corrosion rating: 96hr salt spray test passed
Heavy-duty articulated mounting solution designed for SDA/SDB pneumatic cylinder series. Features precision-machined locating surfaces and reinforced hinge structure for stable reciprocating motion applications. Includes pre-assembled hardware for tool-free installation.
Installation Scenarios:
- Robotic arm joint articulation systems
- Conveyor belt tension adjustment mechanisms
- Automated welding equipment positioning
- Vertical lift cylinder stabilization in logistics sorting machines
- Packaging line rotary actuator support
Mounting guidance:
Apply thread locker (medium strength) on mounting screws.
Ensure hinge pivot axis aligns with cylinder stroke centerline (±0.5mm).
Max allowable angular deviation: 2° during dynamic operation.
Service life:
500,000 cycles under standard load (15kg).
Lubricate pivot points with ISO VG32 hydraulic oil every 2,000 operating hours.
