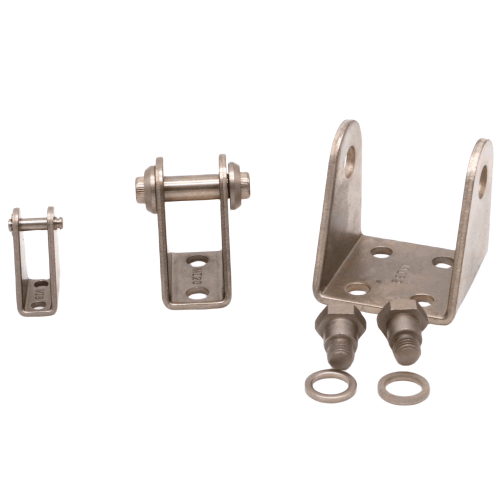

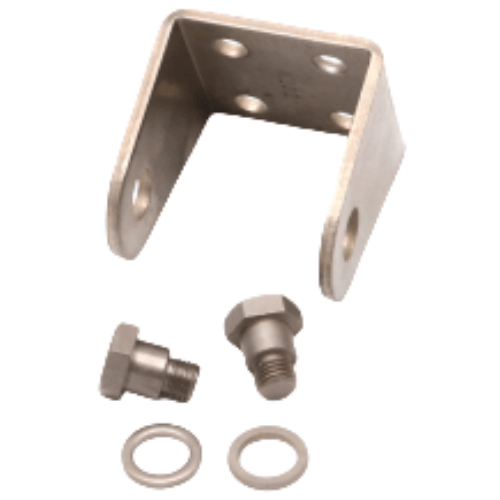

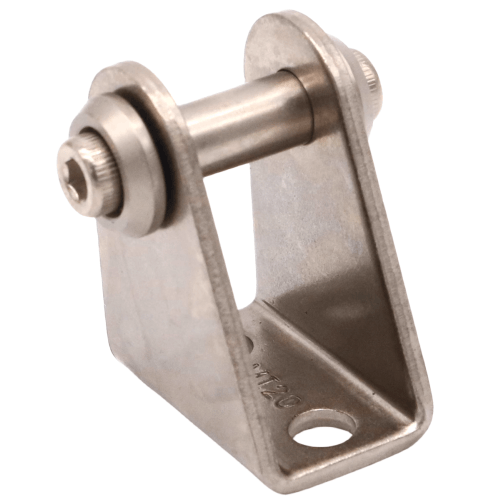

Airtac F-MI-SDB Rear Hinge Bracket Assembly F-MI8SDB
AirTAC F-MI-SDB Rear Hinge Bracket Kit F-MI8SDB Technical Details
- Full model designation: F-MI8SDB
- Bracket type: Rear hinge fixed mount with integrated pivot
- Compatible cylinder series: MI series ø8mm bore
- Material: Aluminum alloy ADC12 (ISO AlSi10Cu2)
- Surface treatment: Anodized (natural silver finish)
- Mounting hole spacing: 30±0.2mm (center-to-center)
- Max swing angle: ±5° axial adjustment
- Fastener specs: M4×12mm stainless steel screws included (2pcs)
- Weight: 68g ±2g
- Dimensions: 45mm(L) × 28mm(W) × 18mm(H)
- Temperature tolerance: -20℃ to 120℃ (operational)
- Static load capacity: 15N lateral / 25N axial
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
Precision-engineered mounting solution for MI series compact cylinders, featuring a reinforced hinge structure with dual ball bearings (RZZ0-4.5) for smooth angular adjustment. The integrated anti-rotation pin prevents unintended position shifts during high-cycle operations. Compatible with ISO 6432 mounting standards.
- Pick-and-place robot end effectors
- Semiconductor wafer handling arms
- Pharmaceutical blister packaging systems
- Textile machinery thread guides
- 3D printer extruder positioning units
Installation protocol:
Apply 0.15-0.2N·m torque during screw tightening. Use Loctite 243
thread locker for vibration-prone environments. Lubricate pivot points
with ISO VG32 hydraulic oil quarterly.
- Optimal pairing: MIAP8x10~50 series cylinders
- Requires 4mm hex key (not included) for installation
- Not compatible with MA/MB series cylinders
| Property | Property Value |
|---|---|
| sku | F-MI8SDB |
