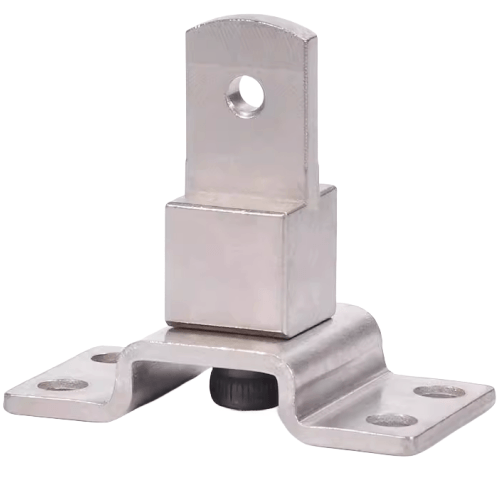

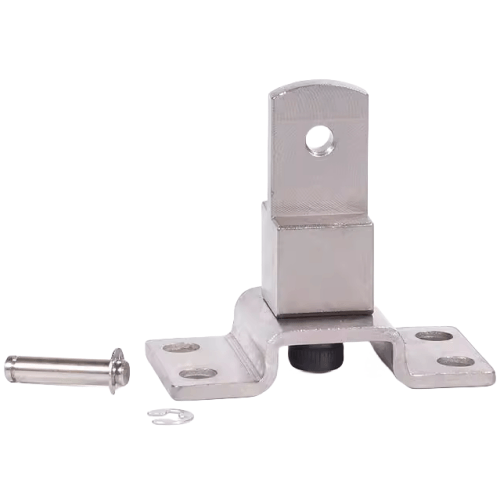

Airtac F-PB-CJ Rear Swing Bracket Assembly Kit F-PB10CJ
AirTAC F-PB-CJ Rear Swing Bracket Kit F-PB10CJ Technical Details
- Full model designation: F-PB10CJ
- Bracket type: Rear swing mount with integrated clamp
- Compatible cylinder series: MXS/MXH/MXP 10mm bore
- Material: Aluminum alloy (AL6063-T5) with steel pivot pin
- Mounting hole pattern: 16mm × 25mm rectangular array
- Max swing torque: 0.5 N·m (4.4 lb-in)
- Angular adjustment: ±15° continuous rotation with 5° click stops
- Static load capacity: 30kg (radial), 15kg (axial)
- Operating temperature: -20°C to 120°C
- Surface treatment: Anodized (black) with PTFE-coated bearing surfaces
- Weight: 178g ±5g (complete assembly)
- Dimensions: 42mm(W) × 58mm(H) × 32mm(D)
- Fastener specs: M4×12mm stainless steel hex socket screws (x2 included)
Precision-engineered swing bracket for multi-axis cylinder positioning, featuring a double-row ball bearing pivot mechanism for smooth angular adjustment. The hardened steel retention clip provides positive engagement with cylinder grooves while allowing quick maintenance access. Includes pre-installed vibration-damping shims (0.5mm NBR) for noise reduction in high-cycle applications.
- Robotic end-effector tooling requiring precise actuator alignment
- Conveyor system pusher mechanisms with space constraints
- Packaging machine rotary indexers needing vibration isolation
- Semiconductor handling equipment requiring frequent angle adjustments
Mounting protocol:
Apply 2-3Nm torque during installation using a calibrated driver.
Lubricate pivot points with ISO VG32 hydraulic fluid quarterly.
Avoid overtightening clamp screws to prevent cylinder ovalization.
