Airtac F-SAI-TC Middle Trunnion Bracket Assembly Kit F-SAI63TC
$53.47
Regular price
$60.97
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SAI63TC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Cylinder Accessories
Brand: AirTAC Automation Group
Series: F-SAI-TC Central Trunnion Bracket Assembly
Description:

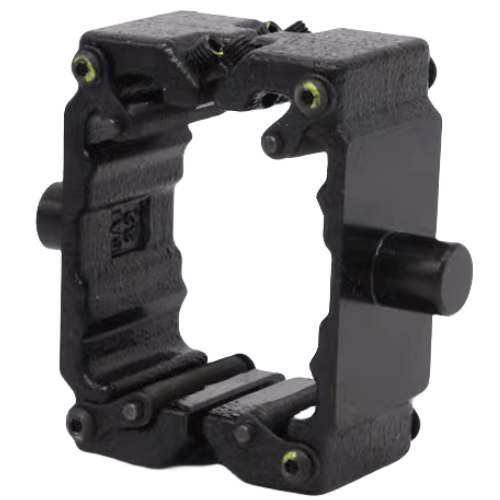

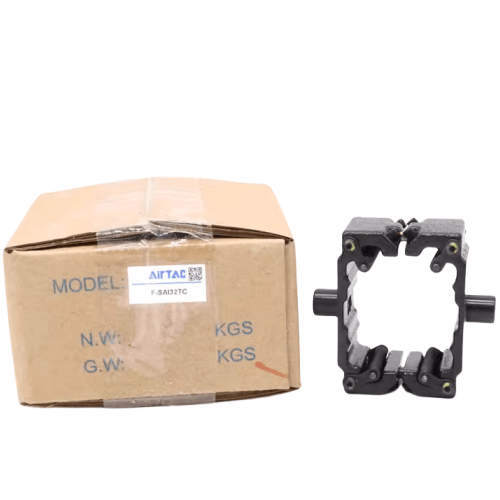

The AirTAC F-SAI-TC series central trunnion bracket kit is a precision-engineered mounting solution designed for optimized cylinder alignment and load distribution in pneumatic systems. This finished assembly package features ISO-standardized mounting interfaces with hardened steel pivot pins and precision-machined aluminum alloy brackets, ensuring vibration resistance and long-term mechanical stability. The kit includes pre-assembled components with anti-corrosive surface treatment, enabling quick installation for mid-stroke cylinder support applications. Compatible with ISO 15552 (VDMA 24562) cylinder profiles, it provides ±1° angular compensation and axial load capacity up to 2.5 kN. Includes integrated locknuts and wear-resistant bushings for maintenance-free operation in industrial automation environments.
Mounting guidance:
Apply 20-25N·m torque during installation using calibrated wrench.
Perform alignment check with 0.02mm feeler gauge between mating surfaces.
Relubricate pivot points every 2,000 operating hours.
AirTAC F-SAI-TC Series Pivot Bracket Kit F-SAI63TC Technical Details
- Complete model: F-SAI63TC
- Series: F-SAI-TC intermediate pivot bracket kit
- Material: Aluminum alloy ADC12 (anodized surface)
- Mounting hole spacing: 63mm (±0.2mm tolerance)
- Thread specifications: M6×1.0 mounting threads (4 holes)
- Max load capacity: 150kg static / 50kg dynamic
- Rotation angle: ±25° adjustable
- Surface hardness: HV 120±15
- Operating temperature: -40℃ to 120℃
- Corrosion resistance: 96hrs salt spray test passed
- Weight: 385g ±5g
- Dimensions: 85mm(L) × 42mm(W) × 28mm(H)
- Compatible cylinders: SDA/SMA/SRA series Ø32-63mm
- Included hardware: 4×M6×12 hex socket screws, 8×anti-vibration washers
Heavy-duty pivot bracket with precision-machined alignment grooves and wear-resistant coating. Features dual-locking mechanism with torque-rated fasteners (8.8 grade) for vibration-prone environments. Pre-lubricated bronze bushings ensure smooth angular adjustment.
Installation Scenarios:
- Robotic arm joint articulation systems
- Automated conveyor tilt mechanisms
- Packaging machine rotating gripper mounts
- Semiconductor equipment wafer handling arms
- Food processing rotary indexing tables
Mounting guidance:
Apply 20-25N·m torque during installation using calibrated wrench.
Perform alignment check with 0.02mm feeler gauge between mating surfaces.
Relubricate pivot points every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | F-SAI63TC |
