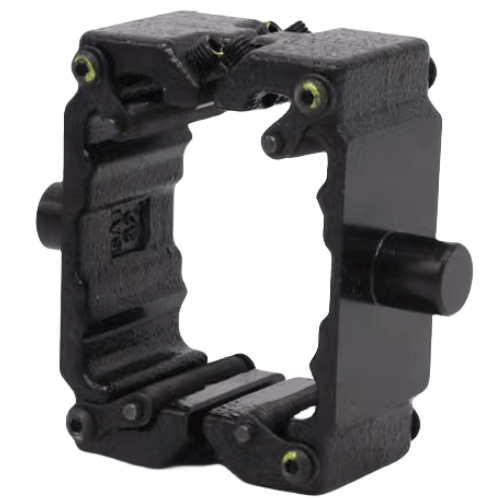

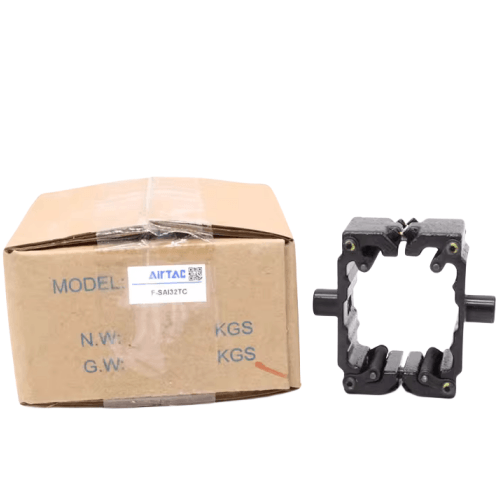

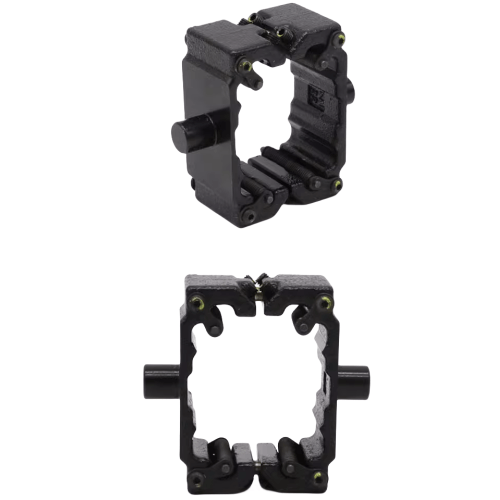

Airtac F-SAI-TC Middle Trunnion Bracket Assembly Kit F-SAI80TC
AirTAC F-SAI-TC Series Pivot Bracket Kit (F-SAI80TC) Technical Details
- Full model designation: F-SAI80TC (Complete assembly kit)
- Bracket type: Center pivot mount with reinforced dual-bearing design
- Compatible cylinder bore: Ø80mm series
- Material: 6063-T5 aluminum alloy with matte black anodization (HV400+)
- Axle diameter: 20±0.015mm (precision ground)
- Mounting hole pattern: 160mm × 96mm rectangular array
- Fasteners included: M12×1.75×35mm grade 12.9 hex bolts (Qty 4) with anti-vibration washers
- Static load capacity: 2,800N radial / 1,900N axial
- Dynamic load rating: 1,500N @ 0.5Hz oscillation
- Weight: 3.7kg ±2% (including all hardware)
- Dimensions: 220mm(L) × 128mm(W) × 82mm(H) (max projection)
- Operating temperature: -40℃ to 150℃ (ambient)
- Surface hardness: ≥80HBW
- Corrosion resistance: 500hr salt spray test passed
- Vibration resistance: 5-2000Hz, 15g acceleration
Heavy-duty pivot bracket engineered for high-moment applications in robotic articulation systems. Features dual tapered roller bearings (HR30204J) with IP67-rated labyrinth seals, enabling ±5° axial compensation. Precisely machined alignment slots allow 0.02mm positional accuracy during installation. Includes corrosion-resistant shim set for precise axial play adjustment.
- Palletizing robot wrist joint stabilization
- Automated welding arm torque transfer points
- CNC rotary table auxiliary support systems
- Agricultural machinery steering cylinder mounts
- Packaging line diverter arm pivots
Installation protocol:
Apply 80-100N·m torque using cross pattern tightening sequence.
Lubricate bearing races with ISO VG32 hydraulic oil before operation.
Perform concentricity check with 0.05mm dial indicator tolerance.
| Property | Property Value |
|---|---|
| sku | F-SAI80TC |
