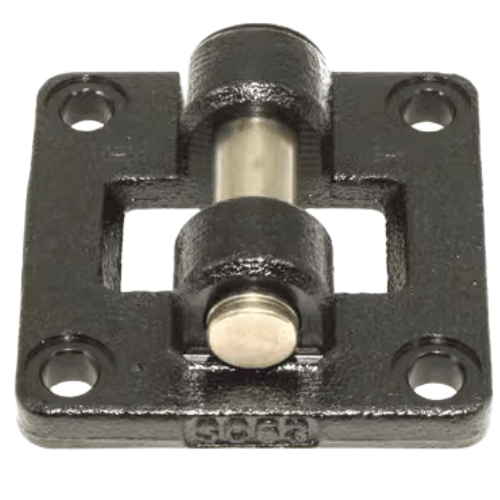

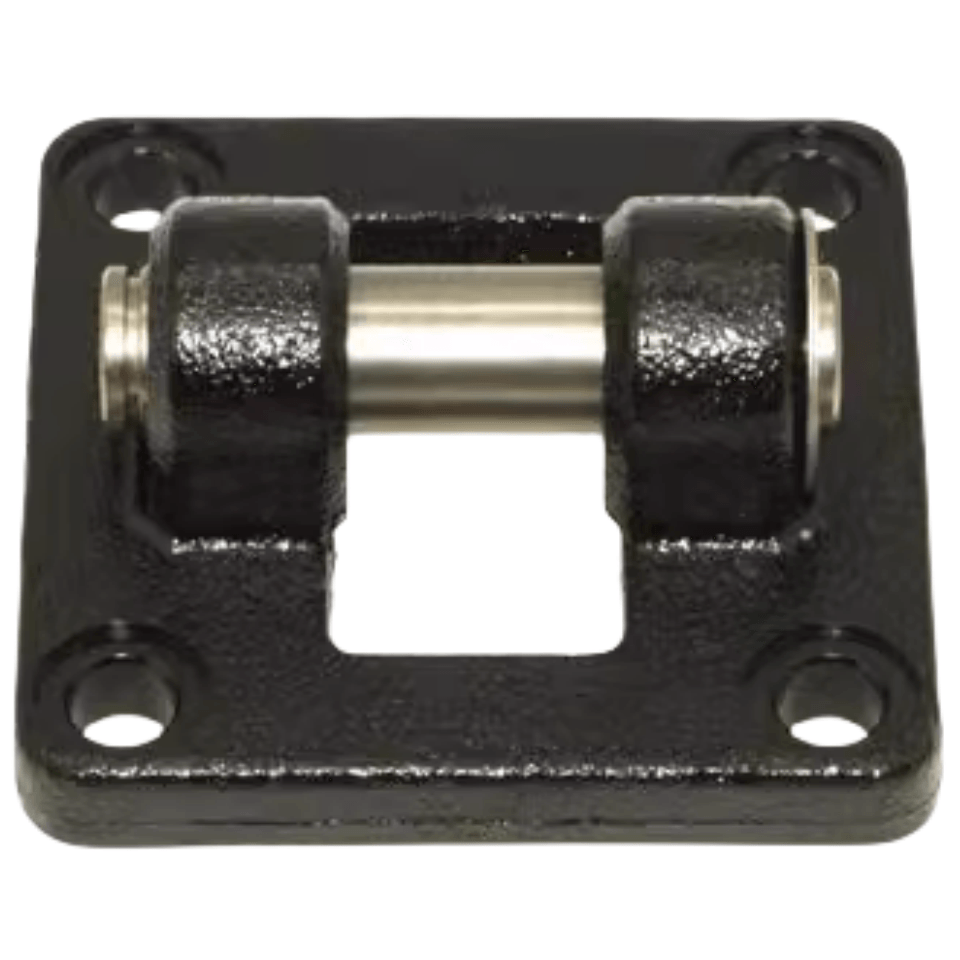

Airtac F-SC-CB Double Ear Fixed Bracket Complete Assembly Package F-SC40CB
AirTAC F-SC-CB Double Ear Mounting Bracket Kit F-SC40CB Specifications
- Model: F-SC40CB (Complete Bracket Kit)
- Type: Universal double-ear mounting bracket assembly
- Compatible cylinder series: MY1 series 40mm bore size
- Material: Aluminum alloy (A6063-T5)
- Surface treatment: Black anodized (8-12μm thickness)
- Bracket hole spacing: 40±0.1mm (center-to-center)
- Mounting hole size: M6×1.0 threaded (4 holes)
- Max static load capacity: 1,200N (axial direction)
- Weight: 328g ±5g (0.72 lbs)
- Dimensions: 76mm(L) × 52mm(W) × 28mm(H)
- Operating temperature: -20℃ to 120℃ (-4°F to 248°F)
- Included components:
- Pre-assembled bracket with M6×12 hex socket screws (4 pcs)
- Spring washers (4 pcs)
- Flat washers (4 pcs)
- Anti-vibration rubber pads (2 pcs)
Heavy-duty mounting solution designed for precise cylinder alignment and vibration damping. Features CNC-machined symmetrical ears with through-hole design for multi-position mounting. Includes pre-lubricated components for immediate installation and stainless steel fasteners for corrosion resistance in humid environments.
- Industrial automation equipment cylinder mounting
- Robotic arm joint stabilization
- Packaging machinery linear actuator installations
- CNC machine tool pneumatic system integration
- Conveyor system directional control units
Installation note:
Mounting surface flatness should be ≤0.1mm/m. Use torque wrench at 6.5-7.5N·m
for screw tightening. Apply thread locker (medium strength) for high-vibration environments.
Regular inspection recommended every 2,000 operating hours.
