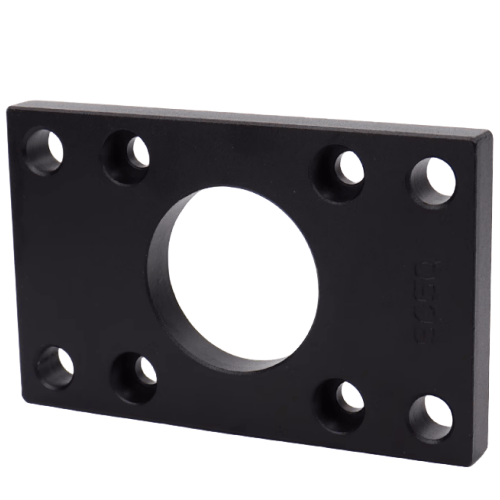

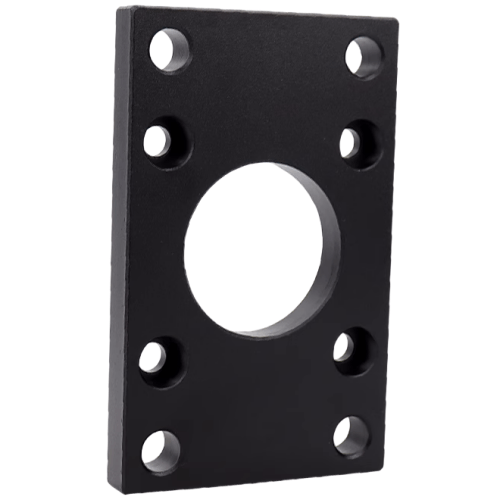

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC100FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit F-SC100FA Technical Details
- Full model designation: F-SC100FA
- Kit type: Complete pre-assembled flange mounting solution
- Compatible cylinder series: SC/SUC 100mm bore size
- Material: Precision-machined aluminum alloy (AL6063-T5)
- Surface treatment: Hard anodized (15-20μm thickness)
- Mounting hole pattern: ISO 15552 standard (4×M8 threaded holes)
- Hole spacing: 160mm × 160mm square pattern
- Thickness: 12mm ±0.1mm
- Weight: 2.85kg ±3%
- Dimensions: 180mm(W) × 180mm(D) × 32mm(H)
- Fastener grade: Class 8.8 zinc-plated steel bolts included
- Operating temperature: -20°C to 80°C
- Vibration resistance: ≤20m/s² (ISO 10816-3)
Heavy-duty front flange assembly designed for stable cylinder mounting in high-moment applications. Features CNC-machined alignment surfaces and oversized bearing areas to prevent axis deviation. Includes pre-installed mounting hardware with anti-loosening washers.
- Vertical cylinder mounting in robotic welding fixtures
- Pneumatic press straightening machine bases
- High-cycle packaging equipment with side-load forces
- Multi-axis material handling systems requiring precise alignment
Installation protocol:
Apply 25-30N·m torque using crisscross pattern during bolt tightening.
Use dial indicator to verify <0.05mm flange face runout after installation.
Lubricate guide pins with ISO VG32 hydraulic oil before assembly.
| Property | Property Value |
|---|---|
| sku | F-SC100FA |
