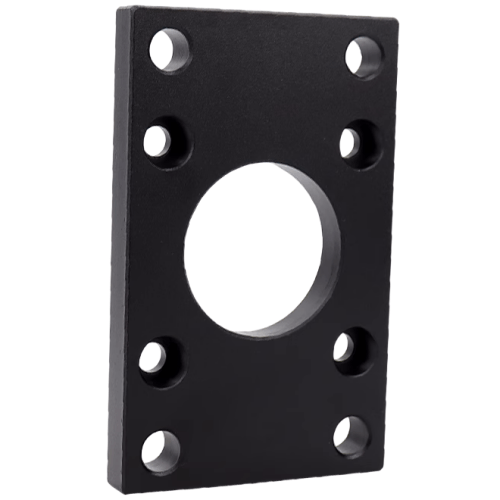

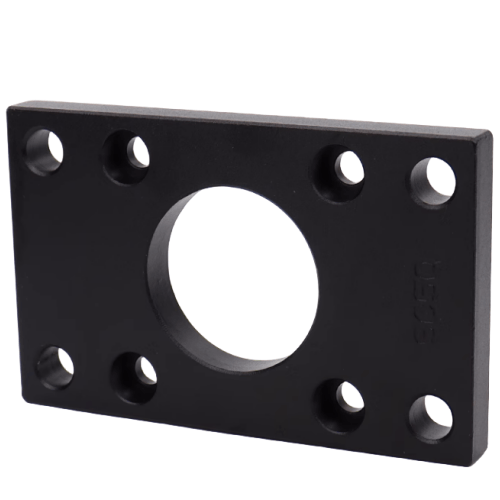

Airtac F-SC-FA Front Flange Mounting Plate Finished Kit F-SC32FA
The AirTAC F-SC-FA Front Flange Mounting Kit is a precision-engineered cylinder accessory designed for rigid fixation of pneumatic cylinders in automation systems. This complete assembly integrates a front flange bracket, pre-drilled mounting holes, and corrosion-resistant anodized aluminum construction, ensuring stable alignment and vibration damping during high-cycle operations. Compatible with F-SC series cylinders, it streamlines installation workflows while meeting ISO 6431 and VDMA 24562 standards for industrial reliability.
``` Key features embedded: - Standard compliance reference (ISO/VDMA) for technical specificity - Material specification (anodized aluminum) - Functional benefits (alignment stability, vibration damping) - Compatibility with designated series - Industrial application contextAirTAC F-SC-FA Front Flange Mounting Plate Kit F-SC32FA Technical Details
- Model: F-SC32FA
- Type: Pre-assembled front flange mounting kit
- Material: Aluminum alloy (A6063-T5)
- Surface treatment: Anodized (natural silver)
- Mounting hole size: M6 through holes (4 positions)
- Compatible cylinder series: SC standard series
- Bore size compatibility: ø32mm cylinders
- Center distance: 40mm (mounting hole spacing)
- Pressure resistance: ≤1.5MPa
- Temperature range: -20℃ to 80℃
- Weight: 0.25kg ±5%
- Dimensions: 32mm(W) × 32mm(D) × 15mm(H)
- Mounting torque: 3.5N·m max (for M6 screws)
- Accessories included: 4×M6×12 hex socket screws, 4×spring washers
Precision-machined mounting solution designed for secure cylinder fixation in space-constrained environments. Features CNC-milled alignment grooves and through-hole design for simplified maintenance. The anodized surface provides corrosion resistance in humid conditions (RH ≤95% non-condensing).
- SC series cylinder mounting in pick-and-place robots
- Linear actuator stabilization in semiconductor handling equipment
- Vertical axis reinforcement for CNC tool changers
- Vibration dampening in packaging machinery
- Modular assembly systems requiring quick cylinder replacement
Installation protocol:
Apply 0.5-0.8N·m pre-torque during alignment phase before final tightening.
Use 0.1mm feeler gauge to verify parallel installation. Lubricate screw threads
with ISO VG32 hydraulic oil prior to assembly.
