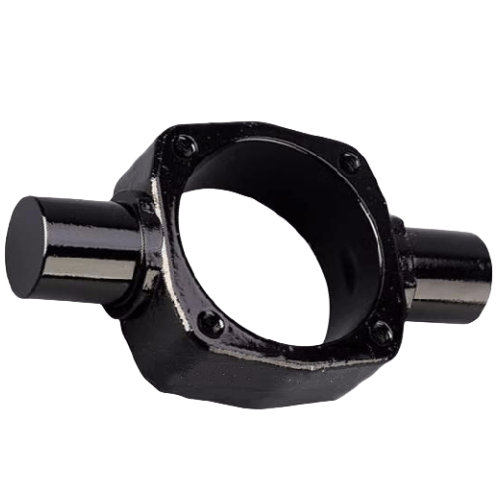

Airtac F-SC-TC Trunnion Bracket F-SC100TC
$34.60
Regular price
$42.10
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SC100TC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
Installation protocol:
Use 12.9-grade mounting bolts torqued to 22-25N·m. Apply thread-locking compound
(Loctite 243 recommended) and verify perpendicularity within 0.2mm/m using dial indicator.
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC-TC Intermediate Trunnion Bracket F-SC100TC Specifications
- Model: F-SC100TC
- Type: Heavy-duty trunnion mounting bracket
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (black)
- Max load capacity: 150kg (static)/120kg (dynamic)
- Mounting hole spacing: 100mm (center-to-center)
- Bolt hole size: M8 (8mm diameter)
- Compatible cylinder series: SC/SU series Ø32-100mm
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤10Hz (1.5mm amplitude)
- Weight: 0.45kg ±5%
- Dimensions: 120mm(L) × 50mm(W) × 25mm(H)
- Protective coating: Anti-corrosion MIL-STD-810G compliant
Precision-machined pivot support for cylinder mounting in multi-axis configurations. Features CNC-milled alignment grooves and laser-etched positioning marks for simplified installation. The asymmetric design allows 180° rotation adjustment with ±0.1mm positional repeatability.
Typical Applications:
- Industrial robot wrist joint articulation
- Packaging line rotary transfer mechanisms
- Automated material handling pivot points
- CNC machine tool clamping systems
- Palletizing robot load-bearing joints
Installation protocol:
Use 12.9-grade mounting bolts torqued to 22-25N·m. Apply thread-locking compound
(Loctite 243 recommended) and verify perpendicularity within 0.2mm/m using dial indicator.
Service life:
500,000 cycles at max load (L10 rating). For continuous operation, lubricate
pivot surfaces with ISO VG32 hydraulic oil every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | F-SC100TC |
