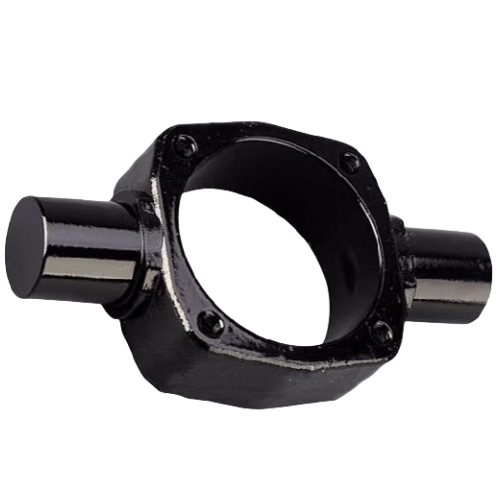

Airtac F-SC-TC Trunnion Bracket F-SC50TC
Brand: AirTAC
Series: F-SC-TC Center Trunnion Bracket
The AirTAC F-SC-TC Series Center Trunnion Bracket is an engineered mounting solution designed for precision alignment and load distribution in pneumatic cylinder applications. Featuring reinforced trunnion geometry with ISO standardized mounting dimensions, this accessory ensures optimal moment resistance during reciprocating motion cycles. The bracket's CNC-machined interface surfaces provide superior parallelism and perpendicularity tolerances, while through-hardened mounting holes maintain dimensional stability under dynamic loading conditions. Compatible with ISO 15552/VDMA 24562 cylinder profiles.
AirTAC F-SC-TC Center Pivot Bracket F-SC50TC Technical Details
- Model: F-SC50TC
- Type: Heavy-duty center pivot bracket with T-slot mounting
- Material: Aluminum alloy 6063-T5 (anodized surface treatment)
- Bracket Height: 50mm ±0.2mm
- Base Plate Thickness: 12mm
- Mounting Hole Pattern: 32mm × 32mm square (M6 threaded holes)
- Max Load Capacity: 180kg (static), 90kg (dynamic)
- Weight: 428g ±10g
- Dimensions: 72mm(L) × 50mm(W) × 62mm(H)
- Operating Temperature: -40℃ to 120℃
- Surface Hardness: HV 80-100
- Corrosion Resistance: 500hr salt spray test passed
- Compatible Actuator Series: SC-50/63/80, SDA-50/63
- Protection Rating: IP54 (standard configuration)
Precision-machined pivot bracket designed for heavy-load linear guide systems, featuring dual-axis adjustment capability (±2° horizontal tilt compensation). The T-slot base allows flexible mounting on aluminum profiles while the hardened steel pivot pin (HRC 45-50) ensures smooth rotation under load. Includes stainless steel shim washers for precise height calibration.
- Automated material handling systems with SC-series cylinders
- Palletizing robot end-of-arm tooling
- Precision alignment in semiconductor wafer handling
- Packaging machinery with oscillating motion requirements
- Automotive assembly line positioning fixtures
Installation tip:
Apply molybdenum disulfide grease (NLGI #2) to pivot points during assembly.
Torque M6 fasteners to 8-10Nm using cross-pattern tightening sequence.
For vertical installations, use secondary retention clip (sold separately).
| Property | Property Value |
|---|---|
| sku | F-SC50TC |
