Airtac F-SC-TCM Trunnion Mount Finished Assembly Kit F-SC125TCM1
$53.47
Regular price
$60.97
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SC125TCM1
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: Airtac
Series: F-SC-TCM

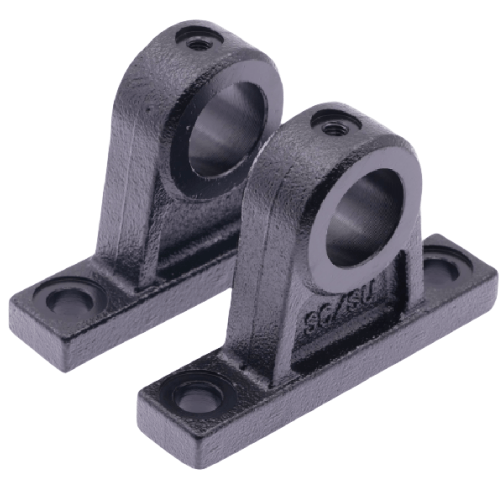

Product Name: Trunnion Mount Bracket Assembly
Description: Precision-engineered trunnion mount bracket for cylinder stabilization, featuring corrosion-resistant zinc alloy construction with pre-drilled mounting holes for versatile installation. Includes integrated pivot bearings for ±5° angular adjustment, ensuring precise alignment in pneumatic systems. ISO 6432 compliant design with 4-M6 threaded ports for accessory integration. Rated for 0.15-1.0 MPa operating pressure.
Installation protocol:
Use torque wrench to tighten M8 bolts to 22-25N·m. Apply Loctite 243
on threads. Align bracket's datum edge (marked ▲) with machine base
reference surface. Perform alignment check every 500 operating hours.
AirTAC F-SC-TCM Trunnion Mount Bracket Kit F-SC125TCM1 Specifications
- Model: F-SC125TCM1
- Type: Pre-assembled trunnion mount kit with lock nuts
- Material: Aluminum alloy (A6063-T5)
- Surface treatment: Black anodized (12-15μm thickness)
- Bracket type: Double trunnion with reinforced ribs
- Max dynamic load: 200 kg (440 lbs)
- Max static load: 400 kg (880 lbs)
- Mounting hole spacing: 125±0.2mm (center-to-center)
- Bolt size compatibility: M8×1.25 (4 holes)
- Weight: 1.2 kg (2.65 lbs)
- Dimensions: 125mm(L) × 50mm(W) × 60mm(H)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤15Hz @ 2mm amplitude
- Corrosion resistance: 96hrs salt spray test passed
Heavy-duty trunnion mount kit designed for precise cylinder alignment and vibration damping. Features precision-machined mounting surfaces (Ra1.6μm finish) with integrated anti-rotation tabs. Includes pre-installed Class 10.9 steel lock nuts with nylon inserts for secure fastening.
Typical Applications:
- Industrial robot arm joint actuators
- Plastic injection molding machine clamps
- Automated conveyor system pushers
- CNC machine tool positioning units
- Automotive assembly line fixtures
Installation protocol:
Use torque wrench to tighten M8 bolts to 22-25N·m. Apply Loctite 243
on threads. Align bracket's datum edge (marked ▲) with machine base
reference surface. Perform alignment check every 500 operating hours.
| Property | Property Value |
|---|---|
| sku | F-SC125TCM1 |
