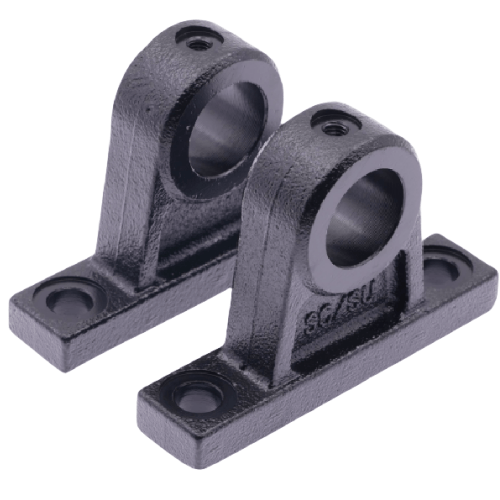

Airtac F-SC-TCM Trunnion Mount Finished Assembly Kit F-SC160TCM1
AirTAC F-SC-TCM Trunnion Mounting Bracket Complete Kit F-SC160TCM1 Specifications
- Model: F-SC160TCM1
- Type: Heavy-duty trunnion bracket kit with integrated mounting hardware
- Compatible cylinder series: SC/SU/SE 32-50mm bore size
- Material: Aluminum alloy (AL6063-T5)
- Surface treatment: Anodized (natural color)
- Static load capacity:
- Radial: 1,200kg
- Axial: 800kg
- Mounting bolt specification: M12×1.75 (Class 8.8 included)
- Installation torque: 45-50 N·m
- Weight: 1.2kg ±2%
- Dimensions: 160mm(L) × 80mm(W) × 60mm(H)
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤10Hz (1.5mm amplitude)
- Corrosion resistance: 96hr salt spray test passed
- Standards compliance: ISO 6431, ISO 15552
Precision-engineered trunnion bracket designed for stable cylinder mounting in high-moment applications. Features dual anti-rotation pins and CNC-machined alignment surfaces for zero-backlash installation. Includes pre-lubricated wear plates and stainless steel fasteners. Compatible with ISO standard cylinder profiles.
- Robotic arm pivot joints in automotive welding lines
- Vertical actuator support in packaging machinery
- Rotary index table installations
- Material handling system guiding mechanisms
- Plastic injection molding machine clamps
Installation note:
Use calibrated torque wrench for bolt tightening. Apply thread-locking compound to M12 bolts.
Ensure 0.05mm maximum clearance between bracket and cylinder trunnion shafts. Perform alignment
verification with dial indicator (recommended tolerance: ≤0.1mm TIR).
