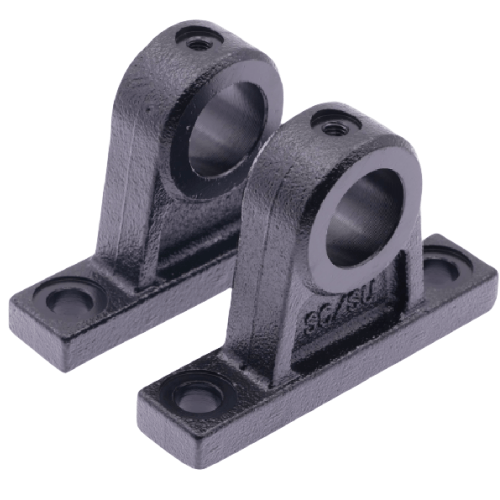

Airtac F-SC-TCM Trunnion Mount Finished Assembly Kit F-SC250TCM1
AirTAC F-SC-TCM Trunnion Bracket Kit F-SC250TCM1 Technical Details
- Model: F-SC250TCM1
- Type: Pre-assembled trunnion bracket kit with mounting hardware
- Compatible cylinder series: F-SC250 standard cylinders
- Material: Aluminum alloy (AL6063-T5)
- Surface treatment: Anodized (natural silver)
- Bearing type: Self-lubricating sliding bearing
- Max radial load capacity: 2,800 N
- Max axial load capacity: 1,400 N
- Rotation angle: ±5° adjustable
- Mounting bolt: M12×1.75 grade 10.9 (included)
- Anti-rotation pin: Ø8h7 hardened steel (included)
- Operating temperature: -20℃ to 80℃
- Weight: 1.2 kg (complete kit)
- Dimensions: 250mm(L) × 100mm(W) × 80mm(H)
Heavy-duty trunnion mounting solution designed for F-SC250 series cylinders, featuring precision-machined alignment surfaces and maintenance-free operation. The integrated tapered roller bearing allows smooth pivoting motion under combined loads. Includes pre-loaded Belleville washers for vibration resistance.
- Rotary clamping mechanisms in CNC fixtures
- Pivot points for material handling robots
- Oscillating conveyor drives
- Packaging machine rotary actuators
- Automated welding positioners
Installation guidance:
Apply 20-30 N·m torque on M12 bolts using cross-tightening sequence.
Lubricate bearing surfaces with ISO VG32 hydraulic oil before initial operation.
Verify bracket alignment within 0.2mm parallel tolerance.
