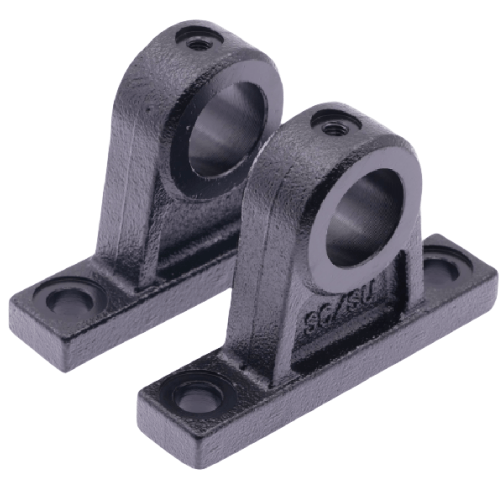

Airtac F-SC-TCM Trunnion Mount Finished Assembly Kit F-SC40TCM1
AirTAC F-SC-TCM Trunnion Mount Kit F-SC40TCM1 Technical Specifications
- Model: F-SC40TCM1
- Series: F-SC-TCM Standard Trunnion Bracket Kit
- Material: Aluminum alloy (A6063-T5 base, S45C steel shafts)
- Surface treatment: Black anodized (MIL-A-8625 Type III)
- Mounting orientation: 360° adjustable rotation
- Bore size compatibility: ø40mm cylinders
- Mounting bolt specifications: M8×1.25 (4 places) with Class 8.8 hardware
- Shaft diameter: ø20h7 precision ground
- Bracket opening: 42±0.2mm (cylinder clamp width)
- Axial load capacity: 800kg static / 400kg dynamic
- Radial load capacity: 300kg at 50mm moment arm
- Operating temperature: -20℃ to +80℃
- Weight: 1.2kg (complete assembly)
- Dimensions: 120mm(L) × 80mm(W) × 50mm(H)
- Mounting hole pattern: 60mm × 40mm rectangular array
- Vibration resistance: 5-2000Hz, 20m/s² max
Heavy-duty trunnion mount solution with integrated mounting hardware, designed for precision alignment of ø40mm pneumatic cylinders. Features double-bearing support structure with PTFE-impregnated bushings for smooth articulation. Includes pre-assembled mounting brackets, shaft collars, and anti-rotation pins for quick installation.
- Multi-axis robotic material handling systems
- Palletizing machine cylinder supports
- Automated welding fixture positioning
- Packaging line rotary actuators
- Die-casting machine ejection mechanisms
Installation protocol:
Apply 25-30N·m torque to M8 fasteners using cross-pattern tightening sequence.
Lubricate shaft journals with ISO VG32 hydraulic oil before operation.
Maintain 0.1-0.3mm clearance between bracket and cylinder body.
| Property | Property Value |
|---|---|
| sku | F-SC40TCM1 |
