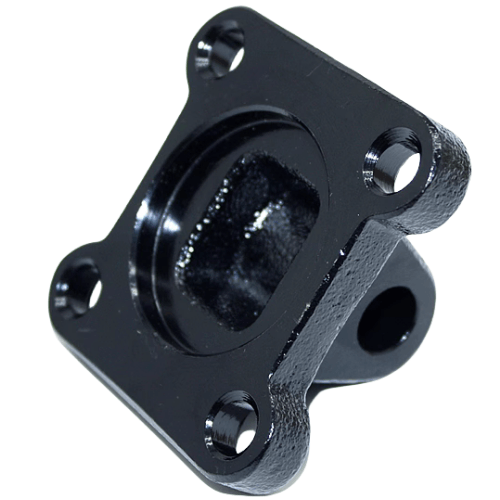

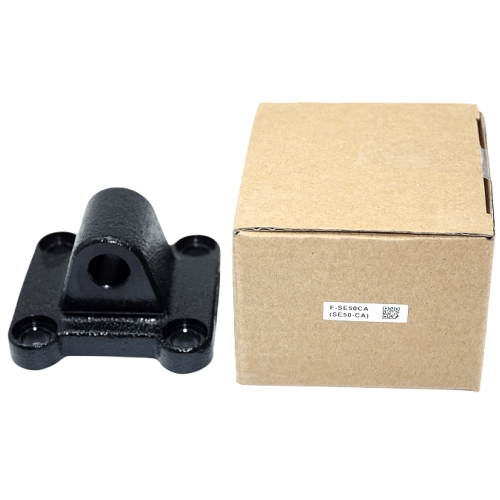

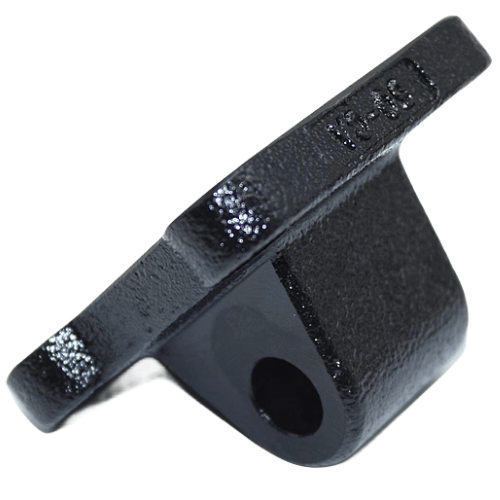

Airtac F-SE-CA Single Lug Bracket Assembled Kit F-SE100CA
$24.88
Regular price
$32.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SE100CA
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AIRTAC
Series: F-SE-CA
**F-SE-CA Single Ear Bracket Complete Assembly Kit**
AIRTAC's F-SE-CA series single ear mounting bracket kit provides a robust and precision-engineered solution for cylinder fixation in pneumatic systems. Designed for seamless integration with standard cylinder models, this complete assembly features a reinforced single-ear structure with pre-drilled mounting holes for quick installation. The zinc-plated steel construction ensures corrosion resistance and extended service life in demanding industrial environments. Compatible with ISO 15552 cylinder profiles, it delivers vibration-dampening stability and precise axial alignment during reciprocating motions. The kit includes all necessary fasteners (DIN 933 hex bolts and DIN 985 lock nuts) for secure mounting, meeting ISO 6431 mounting standards. Ideal for linear motion applications requiring rigid mounting interfaces while maintaining angular adjustment flexibility.
Mounting protocol:
Apply 2.5-3.0N·m torque during installation using calibrated tool.
Re-torque after 50 operating cycles. Not recommended for
continuous side-load applications exceeding 15° angular deflection.
AirTAC F-SE-CA Single-Ear Bracket Kit F-SE100CA Technical Details
- Model: F-SE100CA
- Type: Pre-assembled single-ear mounting bracket kit
- Material: Aluminum alloy ADC12 (die-cast)
- Surface treatment: Black anodized oxidation (8-12μm)
- Mounting hole spacing: 30±0.2mm (horizontal) × 20±0.15mm (vertical)
- Thread specifications: M6×1.0 internal threads (ISO 68-1 compliant)
- Compatible cylinder series: SC/SU/SI 32-100mm bore sizes
- Max static load capacity: 1,200N (axial direction)
- Vibration resistance: 5-200Hz, 1.5mm amplitude
- Operating temperature: -20℃ to 80℃ (no condensation)
- Surface hardness: HV 400±20
- Corrosion resistance: 96hrs salt spray test (ASTM B117)
- Weight: 184g ±3%
- Dimensions: 68mm(L) × 42mm(W) × 28mm(H)
Precision-engineered mounting solution featuring anti-loosening thread lock adhesive pre-applied to M6 fasteners. Includes vibration-damping rubber pads (Shore A 70±5) and stainless steel washers. Meets ISO 6431 mounting standards for pneumatic cylinders.
Installation Scenarios:
- Fixed mounting of mid-size pneumatic cylinders in robotic welding arms
- Vibration-prone environments like CNC machine tool changers
- Modular assembly systems requiring quick cylinder replacement
- Multi-axis positioning stages in semiconductor handling equipment
Mounting protocol:
Apply 2.5-3.0N·m torque during installation using calibrated tool.
Re-torque after 50 operating cycles. Not recommended for
continuous side-load applications exceeding 15° angular deflection.
Pairing Guide:
- Optimal with AirTAC SC32~SC100 series cylinders
- Requires 6mm hex key (not included) for installation
- Use thread sealant (LOCTITE 243 recommended) for pneumatic lines above 0.7MPa
| Property | Property Value |
|---|---|
| sku | F-SE100CA |
