Airtac F-SE-TC Center Trunnion Bracket F-SE125TC
AirTAC F-SE-TC Series Center Pivot Bracket F-SE125TC Technical Specifications
- Model: F-SE125TC
- Type: Intermediate trunnion mounting bracket
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (natural silver)
- Trunnion diameter: Ø12mm (H7 tolerance)
- Static load capacity: 550kg max
- Dynamic load capacity: 220kg at 0.5m/s
- Mounting hole spacing: 160±0.2mm (center-to-center)
- Bolt hole specifications: 2×M10×1.25 (depth 15mm)
- Weight: 0.82kg ±2%
- Dimensions: 198mm(L) × 52mm(W) × 34mm(H)
- Operating temperature: -20℃ to 120℃
- Surface hardness: HV 120±15
- Corrosion resistance: 96hrs salt spray test passed

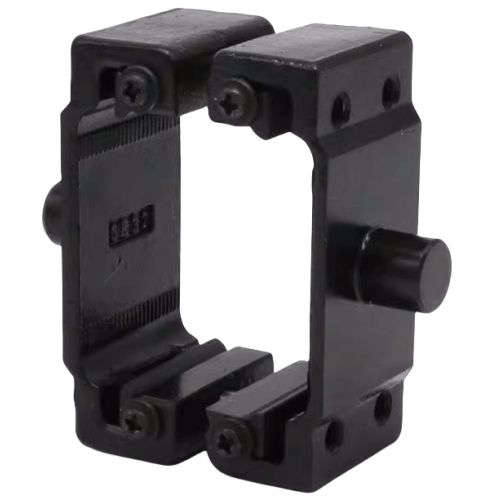

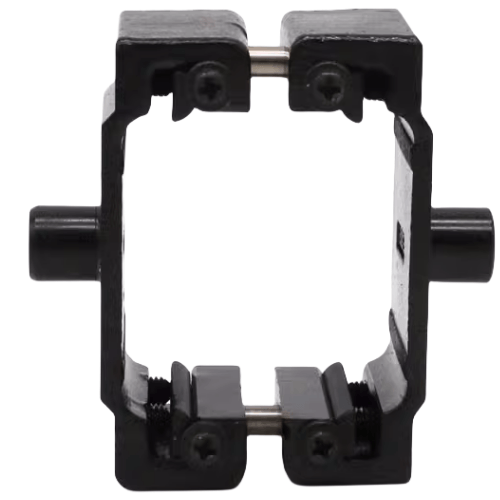

Precision-machined pivot support for cylinder mounting, featuring dual reinforcement ribs and stress-distributed design. The diamond-knurled adjustment surface ensures secure locking while permitting 360° rotational positioning. Compatible with ISO 15552 standard cylinders (specifically designed for 125mm bore series).
- Multi-axis robotic arm joint support systems
- Heavy-duty press machine cylinder stabilization
- Automated conveyor belt tensioning mechanisms
- Rotary indexing table drive units
- Packaging machine swing arm assemblies
Installation protocol:
Apply 25-30N·m torque during bolt tightening using cross-pattern sequence.
Use 0.02mm feeler gauge to verify parallel alignment with cylinder axis.
Lubricate trunnion contact surfaces with ISO VG32 hydraulic oil before operation.
| Property | Property Value |
|---|---|
| sku | F-SE125TC |
