Airtac F-SE-TC Center Trunnion Bracket F-SE32TC
$58.12
Regular price
$65.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SE32TC
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Category: Cylinder Accessories
Brand: AirTAC
Series: F-SE-TC Intermediate Trunnion Mounting Bracket

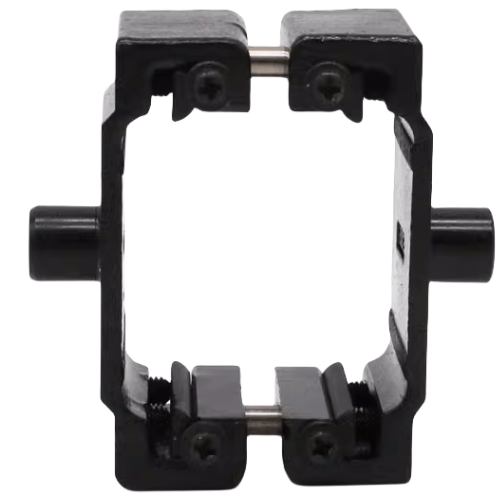

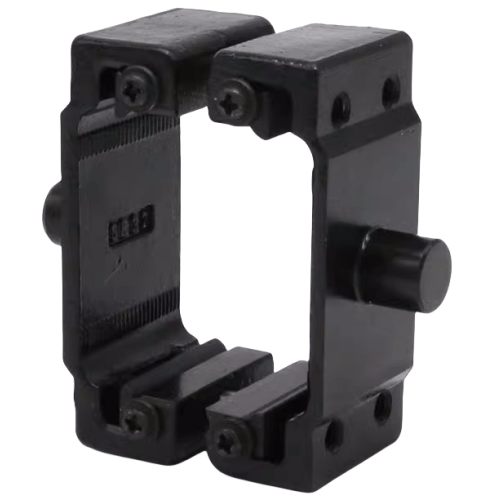

The F-SE-TC series intermediate trunnion bracket is engineered for precision alignment and robust support in pneumatic cylinder installations. Featuring hardened mounting surfaces and standardized bore spacing, this accessory ensures vibration-resistant fixation and optimal force distribution across cylinder bodies. Compatible with ISO-compliant cylinder series, its anodized aluminum construction provides corrosion resistance while maintaining lightweight structural integrity. The trunnion's radial adjustment capability (±2°) allows angular compensation during mounting, critical for high-cycle industrial automation applications. Includes metric threaded ports for seamless integration with pneumatic systems.
Installation protocol:
Apply medium-strength thread locker (Loctite 243 recommended) on mounting bolts.
Perform concentricity alignment using dial indicator (max 0.1mm TIR).
Re-torque after 50 operational hours.
AirTAC F-SE-TC Series Pivot Bracket F-SE32TC Technical Details
- Model: F-SE32TC
- Type: Center pivot bracket with reinforced mounting
- Material: Aluminum alloy ADC12
- Surface treatment: Black anodized (8-12μm thickness)
- Load capacity: 300kg static load (axial direction)
- Mounting hole pattern: 40mm × 40mm square (M8 bolt compatible)
- Bore diameter: Φ32mm (for cylinder rod connection)
- Clearance adjustment: ±3° angular compensation
- Weight: 347g ±5g
- Dimensions: 100mm(L) × 50mm(W) × 32mm(H)
- Operating temperature: -20℃ to 80℃
- Corrosion resistance: 500hr salt spray test passed
- Mounting torque: 12-15N·m (M8 bolts)
Heavy-duty pivot bracket featuring dual-bearing support structure with chromium-plated steel shaft (HRC58-62 hardness). Precision CNC-machined alignment surfaces ensure minimal radial play (±0.05mm). Includes integrated grease retention grooves for long-term lubrication maintenance.
Industrial Applications:
- Rotary actuator mounting in pick-and-place systems
- Parallel cylinder synchronization mechanisms
- Palletizing robot wrist joint reinforcement
- Plastic injection molding machine ejector units
- Automated welding fixture positioning arms
Installation protocol:
Apply medium-strength thread locker (Loctite 243 recommended) on mounting bolts.
Perform concentricity alignment using dial indicator (max 0.1mm TIR).
Re-torque after 50 operational hours.
| Property | Property Value |
|---|---|
| sku | F-SE32TC |
