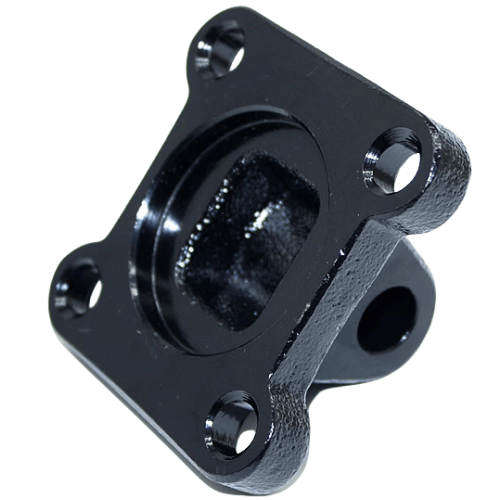

Airtac F-SG-CA Single Lug Bracket Assembly F-SG250CA
AirTAC F-SG-CA Single Ear Mounting Bracket Kit F-SG250CA Technical Details
- Model: F-SG250CA
- Type: Single ear fixed mounting bracket (pre-assembled kit)
- Compatible cylinder bore: Ø250mm series
- Material: Aluminum alloy ADC12
- Mounting hole specification: M12×1.75 threaded
- Surface treatment: Anodized (black)
- Static load capacity: 2,200 N (vertical direction)
- Dynamic load capacity: 1,500 N (vertical direction)
- Torque resistance: 85 N·m max
- Operating temperature: -20℃ to 80℃
- Weight: 1.25 kg ±2%
- Dimensions: 250mm(L) × 42mm(W) × 62mm(H)
- Hardness: 80-85 HBW
- Mounting screw torque: 55-60 N·m (recommended)
Heavy-duty mounting solution designed for precise cylinder alignment in high-vibration environments. Features CNC-machined contact surfaces with ±0.1mm parallelism tolerance and integrated shock-absorbing washers. Includes pre-installed Class 10.9 mounting bolts and anti-corrosion coated hardware.
- Large-format industrial press machines
- Automated foundry equipment installations
- Heavy material handling systems
- Vertical cylinder mounting in robotic welding cells
- Packaging line actuator stabilization
Installation protocol:
Use calibrated torque wrench for bolt tightening. Apply thread-locking compound
(medium strength) on clean threads. Perform alignment check with dial indicator
(max 0.2mm runout allowed). Not suitable for angular loading above 5°.
