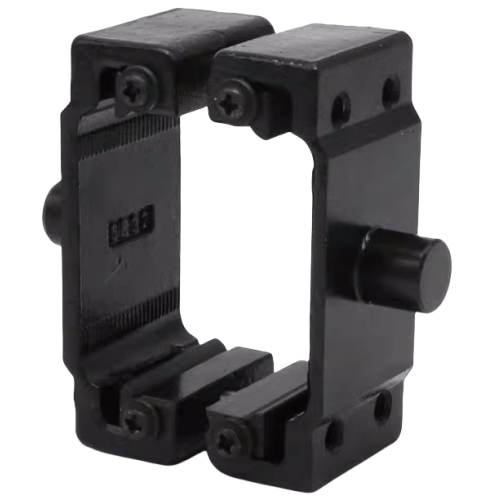

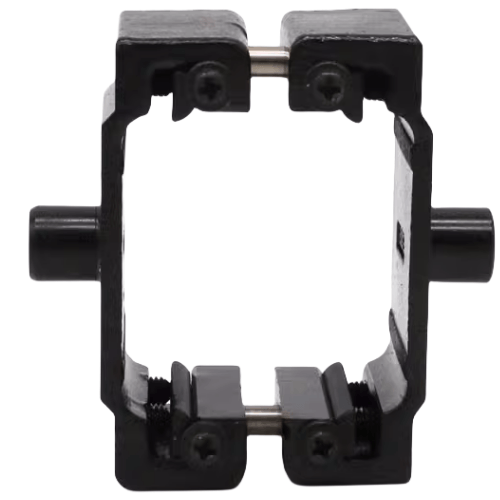

Airtac F-SG-TC Center Trunnion Bracket F-SG125TC
AirTAC F-SG125TC Center Pivot Bracket Specifications
- Model: F-SG125TC
- Type: Heavy-duty center pivot bracket with twin mounting ears
- Material: Aluminum alloy (ADC12)
- Compatible series: MAL/MAS/MAD 125mm bore cylinders
- Max load capacity: 45kg (dynamic), 120kg (static)
- Mounting hole: M8x1.25 internal thread (4 holes)
- Pivot rotation: ±5° adjustable
- Surface treatment: Black anodized (Alodine 1200S)
- Weight: 1.2kg ±5%
- Dimensions: 150mm(L) × 80mm(W) × 45mm(H)
- Bore alignment tolerance: ±0.1mm
- Operating temperature: -20℃ to 80℃
- Vibration resistance: ≤10Hz @ 2mm amplitude
Precision-machined pivot bracket designed for heavy-duty cylinder mounting in multi-axis systems. Features 4-point force distribution and hardened steel bushings for reduced wear. Includes corrosion-resistant coating for harsh environments. Requires periodic lubrication of pivot points.
- Robotic arm articulation joints
- Automated conveyor tilt mechanisms
- Packaging machine rotary actuators
- Die-casting machine mold positioning
- Automotive assembly line fixtures
Installation protocol:
Use 12.9 grade M8 bolts torqued to 22-25N·m. Apply lithium-based grease
(NLGI #2) to pivot surfaces during assembly. Verify parallel alignment
within 0.2mm/m using dial indicator.
| Property | Property Value |
|---|---|
| sku | F-SG125TC |
