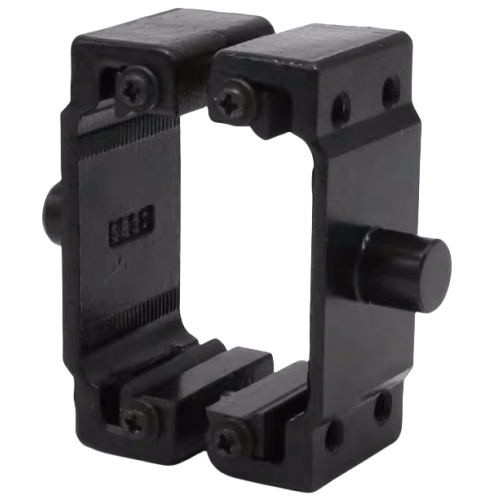

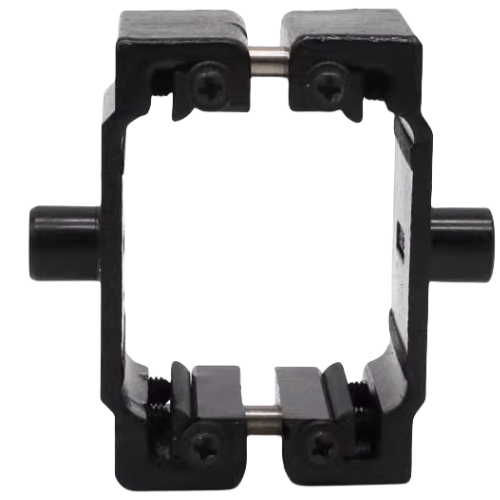

Airtac F-SG-TC Center Trunnion Bracket F-SG250TC
AirTAC F-SG250TC Intermediate Trunnion Bracket Specifications
- Model: F-SG250TC
- Type: Mid-position trunnion mount with through-hole design
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized (black)
- Mounting hole spacing: 250±0.2mm (cylinder bore Φ32-50mm)
- Thread specification: M8×1.25 (standard), M10×1.5 (optional)
- Dynamic load capacity: 60kg (axial), 40kg (radial)
- Static load capacity: 200kg
- Operating temperature: -20℃ to 80℃
- Weight: 1.2kg ±5%
- Dimensions: 250mm(L) × 50mm(W) × 40mm(H)
- Surface hardness: HV 120±15
- Mounting torque: 14-16N·m (M8), 25-28N·m (M10)
Heavy-duty trunnion bracket engineered for precise cylinder alignment in multi-axis systems. Features dual-plane reinforcement ribs and CNC-machined mounting surfaces (Ra≤3.2μm) for vibration damping. Compatible with ISO 15552 standard cylinders. Includes stainless steel wear plates at contact points.
- Robotic welding arm pivot supports
- Automated material handling transfer units
- Packaging machine rotary indexers
- Plastic injection molding ejector mechanisms
- Semiconductor wafer handling robots
Installation note:
Apply medium-strength thread locker (Loctite 243 recommended) on fasteners.
Verify perpendicularity (≤0.1mm/100mm) using dial indicator during assembly.
Re-torque after 50 operational hours.
