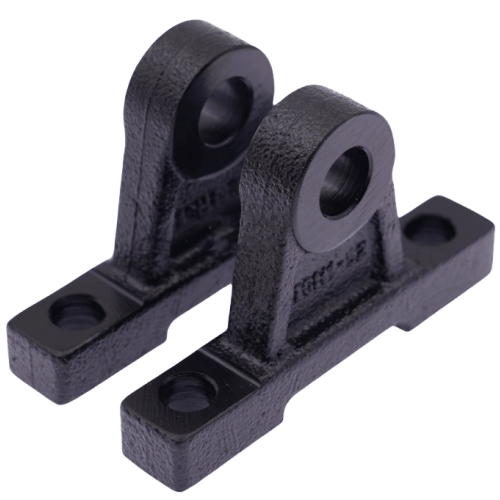

Airtac F-SG Trunnion Bracket Assembly Kit F-SG250TCM2
AirTAC F-SG250TCM2 Trunnion Bracket Kit Technical Details
- Model: F-SG250TCM2
- Type: Heavy-duty trunnion mount kit (pre-assembled)
- Max load capacity: 6,000N (dynamic) / 12,000N (static)
- Material: Aluminum alloy ADC12 with black anodization
- Mounting hole pattern: 4×M12 threaded holes (16mm depth)
- Compatible cylinder bore: Φ250mm series
- Temperature range: -20℃ to +80℃
- Surface hardness: HV 400±50
- Weight: 2.8kg ±5%
- Dimensions: 200mm(L) × 150mm(W) × 80mm(H)
- Corrosion resistance: 96hr salt spray test passed
- Vibration resistance: 10-2000Hz, 15G acceleration
Precision-engineered mounting solution for large-bore cylinders, featuring dual-axis adjustability (±2° horizontal/vertical) for alignment compensation. Includes pre-installed wear-resistant PTFE bushings and stainless steel fasteners (ISO 4762 class 12.9). Sealed against ingress of particulates (IP54 standard).
- Automotive welding fixture positioning systems
- Hydraulic press cylinder stabilization
- Paper converting machinery roller mounts
- Off-highway vehicle steering actuators
- Die casting machine platen guides
Installation protocol:
Apply 25-30Nm torque on M12 mounting bolts using cross-tightening sequence.
Lubricate pivot points with ISO VG32 hydraulic oil during assembly.
Avoid direct exposure to chemical splashes exceeding pH 5-9 range.
| Property | Property Value |
|---|---|
| sku | F-SG250TCM2 |
