Airtac F-SI-CB Double Lug Bracket Assembly Kit F-SI200CB
$125.59
Regular price
$133.09
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-SI200CB
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

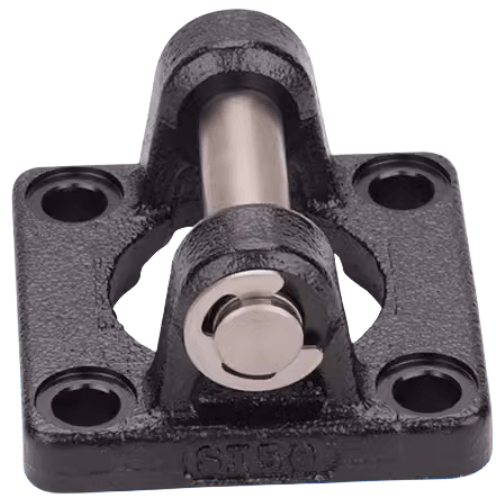

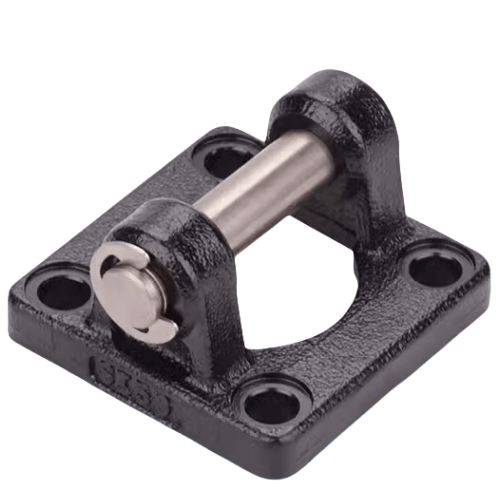

**Product Description: AirTAC F-SI-CB Double Ear Bracket Assembly Kit**
**Category:** Cylinder Accessories
**Brand:** AirTAC
**Series:** F-SI-CB
**Key Features:**
- **ISO 6432 Compliance:** Compact double ear bracket design compliant with ISO 6432 standards for universal cylinder mounting compatibility.
- **Precision-Machined Mounting Holes:** Cylinder mounting holes adhere to ISO 6432 specifications, ensuring secure and stable installation.
- **Stress Reduction & Anti-Rotation:** Engineered to minimize operational stress on cylinders and prevent piston rod rotation under dynamic loads.
- **Complete Installation Kit:** Includes pre-assembled bracket set, fasteners (screws/nuts), and installation guide (refer to product manual for torque specifications).
- **Package Quantity:** 1 pair (pre-configured for immediate use).
**Typical Applications:**
- Industrial automation systems
- Pneumatic cylinder mounting and alignment
- Machinery requiring vibration-resistant or anti-rotation solutions
**Material:** High-strength steel with corrosion-resistant surface treatment.
Installation protocol:
Torque screws to 58-62N·m in crisscross pattern. Use 0.02mm feeler gauge
to verify parallel alignment before final tightening. Replace washers if
surface scratches exceed 0.5mm depth.
AirTAC F-SI-CB Double Ear Mounting Bracket Kit F-SI200CB Specifications
- Model: F-SI200CB
- Type: Pre-assembled double ear mounting bracket kit
- Material: Aluminum alloy 6063-T5
- Surface treatment: Anodized (silver finish)
- Compatible cylinder bore: Ø200mm series
- Mounting hole spacing: 200±0.2mm (center-to-center)
- Bolt hole size: M10×1.25 threaded
- Fastener type: Class 12.9 steel hex socket screws (included)
- Clamping force: Max 8,500N (static load)
- Temperature range: -20℃ to +120℃
- Anti-corrosion rating: 500hr salt spray test passed
- Weight: 2.65kg (complete assembly)
- Dimensions: 320mm(L) × 215mm(W) × 55mm(H)
- Package contents: 2x Brackets, 4x M10×25mm screws, 4x spring washers, 8x flat washers
Heavy-duty alignment-free mounting solution designed for large-bore pneumatic cylinders. Features precision-machined mating surfaces (Ra1.6 finish) ensuring perpendicularity within 0.1mm/100mm. Pre-lubricated threads simplify installation while preventing galling.
Typical Applications:
- High-moment industrial press machines
- Automated material handling systems
- Plastic injection molding clamp units
- Steel coil feeding mechanisms
- Paper converting equipment linear guides
Installation protocol:
Torque screws to 58-62N·m in crisscross pattern. Use 0.02mm feeler gauge
to verify parallel alignment before final tightening. Replace washers if
surface scratches exceed 0.5mm depth.
| Property | Property Value |
|---|---|
| sku | F-SI200CB |
