Airtac F-SI-CB Double Lug Bracket Assembly Kit F-SI32CB

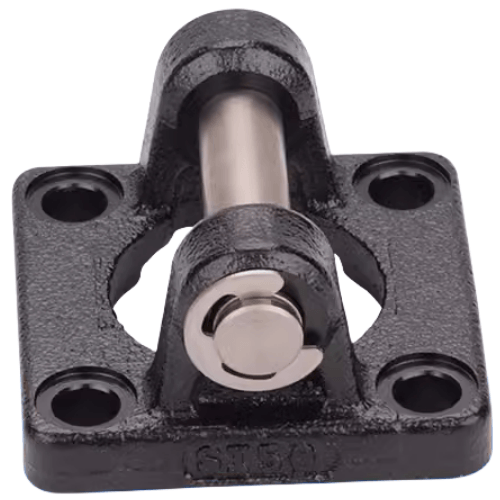

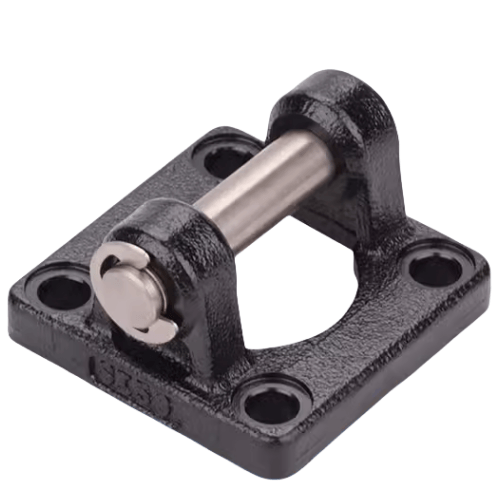

AirTAC F-SI-CB Double Ear Mounting Bracket Kit F-SI32CB Technical Details
- Model: F-SI32CB
- Series: SI Standard Cylinder Accessories
- Compatible Cylinder Bore: Ø32mm (SI-32 series)
- Material: Aluminum alloy ADC12
- Surface Treatment: Black anodized oxidation
- Mounting Type: Double ear fixed center axis
- Thread Specifications: M8×1.25 mounting holes (x2)
- Bracket Thickness: 12mm
- Max Load Capacity: 980N static load
- Operating Temperature: -20°C to 100°C
- Vibration Resistance: ≤49 m/s² (with secure fastening)
- Weight: 0.28kg ±5g
- Dimensions: 32mm(W) × 32mm(D) × 56mm(H)
- Package Includes: Bracket body, M8×20 hex socket screws (2pcs), anti-vibration washers
Heavy-duty mounting solution designed for precise alignment of SI series pneumatic cylinders. Features symmetrical ear design with through-hole axis fixation, ensuring vibration-resistant stability in high-cycle applications. The anodized surface provides corrosion resistance against mild chemicals and industrial lubricants.
- Robotic arm joint mounting in assembly lines
- Vertical cylinder fixation in packaging machinery
- Precision-guided rail systems for material handling
- Vibration-sensitive measurement equipment setups
- Multi-axis actuator configurations in semiconductor tools
- Align cylinder axis with bracket centerline (tolerance ±0.1mm)
- Apply medium-strength thread locker (LOCTITE 243 recommended)
- Tighten M8 screws to 14.7-19.6N·m torque in cross pattern
- Verify perpendicularity with 0.05mm precision level
Maintenance note:
Inspect mounting screws every 500 operating hours during initial 2,000-hour run-in period.
Avoid using impact wrenches - overtightening may deform aluminum threads.
| Property | Property Value |
|---|---|
| sku | F-SI32CB |
