Airtac F-SI-CB Double Lug Bracket Assembly Kit F-SI40CB

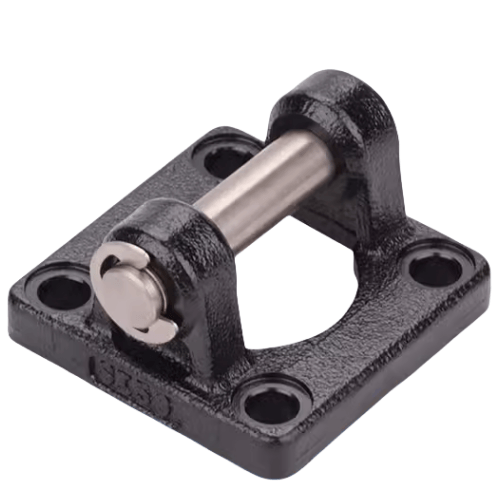

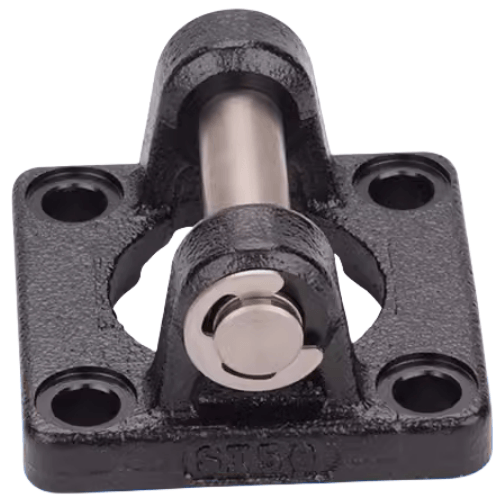

AirTAC F-SI-CB Double Ear Mounting Bracket Kit F-SI40CB Technical Details
- Model: F-SI40CB (Complete Bracket Kit)
- Material: Aluminum alloy ADC12
- Surface treatment: Anodized oxidation (natural color)
- Compatible cylinder series: SI series 40mm bore size
- Mounting hole spacing: 40±0.1mm (center-to-center)
- Bolt specifications: M6×20mm hex socket screws (Qty 4 included)
- Load capacity: Max 250N static load
- Temperature resistance: -20℃ to 120℃
- Vibration resistance: ≤10Hz/1.5mm amplitude
- Weight: 385g ±5g (including fasteners)
- Dimensions: 72mm(L) × 50mm(W) × 28mm(H)
- Mounting base thickness range: 8-25mm
- Corrosion protection: MIL-STD-810 salt spray test passed 96hrs
Precision-machined bilateral mounting solution for SI series cylinders, featuring anti-loosening thread design and wear-resistant contact surfaces. Includes pre-installed vibration-damping washers and comes fully assembled with ISO 4762 grade 8.8 fasteners. Optimized for repetitive motion applications with thermal expansion compensation.
- Robotic arm joint cylinder fixation
- Pneumatic press vertical axis stabilization
- Conveyor system pusher mechanisms
- Automated packaging machine linear actuators
- Semiconductor handling equipment vibration-sensitive mounts
Mounting protocol:
Apply 4.5-5.5N·m torque using calibrated tool. Use shim washers
when mounting on surfaces exceeding 25mm thickness. Perform
concentricity check after 24hrs of initial operation.
| Property | Property Value |
|---|---|
| sku | F-SI40CB |
